Why the Best Laser Aim Point Moves
A drone can stay centered in the sight while its most vulnerable spot moves out of the beam path as it banks or turns.
On this page
- Why a centered target is not enough
- How banking and rotation move vulnerable features
- What pose aware tracking must estimate
Page outline Jump by section
Introduction
A laser weapon does not achieve its effect simply by touching a target with light. It must concentrate energy on a vulnerable feature long enough for damaging heat to accumulate. That creates a subtle tracking problem: a drone, missile, or aircraft can remain perfectly centred in the weapon’s sight while the component most worth heating has moved elsewhere because the target has banked, rolled, pitched, or turned. In practice, the best laser aim point often moves across the target image even when the target itself remains locked in the centre of the tracker. This is why modern laser-weapon research increasingly emphasises target pose estimation—the measurement of a target’s orientation in three-dimensional space—as a prerequisite for effective aim-point selection and maintenance. U.S. Navy+2Baird Maritime / Work Boat World [navy.mil]navy.milnps develops ai solution to automate drone defense with high energy lasersU.S. NavyNPS Develops AI Solution to Automate Drone Defense with…12 Feb 2025 — By improving target classification, pose estimation, ai…
Why a Centred Target Is Not Enough
Conventional tracking systems often focus on keeping the target centroid—the apparent centre of the object—inside the aiming reticle. For a high-energy laser, however, the question is not whether the beam strikes the target, but whether it strikes the right part of the target.
Consider a small unmanned aircraft. Depending on its orientation, the beam may land on a wing surface, battery compartment, sensor package, propulsion section, or a structurally robust area. These locations do not respond equally to heating. Some components may fail rapidly under sustained irradiation, while others can absorb significant energy with little immediate effect. Laser engagement efficiency therefore depends on maintaining illumination of a specific vulnerable feature rather than merely keeping the beam somewhere on the airframe. [Google Patents+2IDU FTP]patents.google.comFurther, the laser tracking system is able to maintain a…Read more…
This distinction explains why laser-tracking architectures often separate target tracking from aim-point tracking. One loop follows the object. Another attempts to hold the beam on a designated damage point. Patents and beam-control research repeatedly describe locking onto vulnerable features rather than simply following the target’s centre. [Google Patents]patents.google.comFurther, the laser tracking system is able to maintain a…Read more…
How Banking and Rotation Move Vulnerable Features
The key mechanism is geometric rather than aerodynamic. As a target rotates, the visible location of its critical components changes relative to the observer.
Imagine a quadcopter approaching head-on. From that angle, a battery housing might appear near the centre of the image. If the drone banks sharply, the same battery compartment may shift toward the edge of the visible silhouette. If the laser continues aiming at the original image centre, the beam can drift onto a less important structure despite flawless overall target tracking. [Baird Maritime / Work Boat World]bairdmaritime.comdevelopment underway on ai enabled laser weapon systems for us navy shipsBaird Maritime / Work Boat WorldDevelopment underway on AI-enabled laser weapon…14 Feb 2025 — Along with the drone type and aimpoint d…
Several forms of motion matter:
- Roll (banking): rotates the target around its forward axis, moving wings, motors, sensors, and other components around the image.
- Pitch: changes which surfaces are exposed to the laser and can hide or reveal vulnerable features.
- Yaw (turning): presents different sides of the vehicle, shifting the apparent location of internal systems and external equipment.
- Combined manoeuvres: create continuous motion of critical features across the camera image even when the target remains visually stable. [Baird Maritime / Work Boat World+2ResearchGate]bairdmaritime.comdevelopment underway on ai enabled laser weapon systems for us navy shipsBaird Maritime / Work Boat WorldDevelopment underway on AI-enabled laser weapon…14 Feb 2025 — Along with the drone type and aimpoint d…
The result is that the ideal heating location becomes a moving point attached to the target rather than a fixed point in the camera frame.
The Same Component Can Require Different Aim Points
Orientation changes do more than move components across the image. They also change how the laser energy interacts with the target.
A component that is directly exposed in one orientation may become partially shielded by another structure after a turn. A beam striking a surface at a shallow angle may spread its energy over a larger area than one striking more directly. Different orientations can therefore alter both the accessibility of a vulnerable feature and the rate at which heat accumulates there. [ResearchGate+2IDU FTP]researchgate.netTarget Aiming Point Focusing Strategy for Destroying a…January 1, 2023 — 28 May 2026 — Thus, this paper proposes utilizing…
This means that “the battery compartment” or “the sensor package” is not always a single fixed aim point. The optimal impact location can migrate across the visible target as the geometry changes. A laser fire-control system may need to choose a different pixel location in successive video frames even though it is still pursuing the same underlying component.
What Pose-Aware Tracking Must Estimate
To solve this problem, the weapon must estimate target pose: the orientation of the target relative to the sensor.
Pose estimation attempts to answer questions such as:
- Which side of the drone is facing the laser?
- How much is the aircraft banked?
- Is the target climbing, descending, or turning?
- Which vulnerable components are currently visible?
- Where should those components appear in the image? ResearchGate+3U.S. Navy+3Baird Maritime / Work Boat World [navy.mil]navy.milnps develops ai solution to automate drone defense with high energy lasersU.S. NavyNPS Develops AI Solution to Automate Drone Defense with…12 Feb 2025 — By improving target classification, pose estimation, ai…
Modern research testbeds have explored using machine learning and image-based recognition to infer a UAV’s orientation from camera imagery. Once the pose is estimated, a model of the target can predict where critical features should be located within the image. The laser can then track the desired feature rather than the target’s geometric centre. [Taylor & Francis Online+2ResearchGate]tandfonline.comTaylor & Francis OnlineDeep Learning Based Object Attitude Estimation for a…by L Herrera · 2023 · Cited by 5 — This paper presents an…

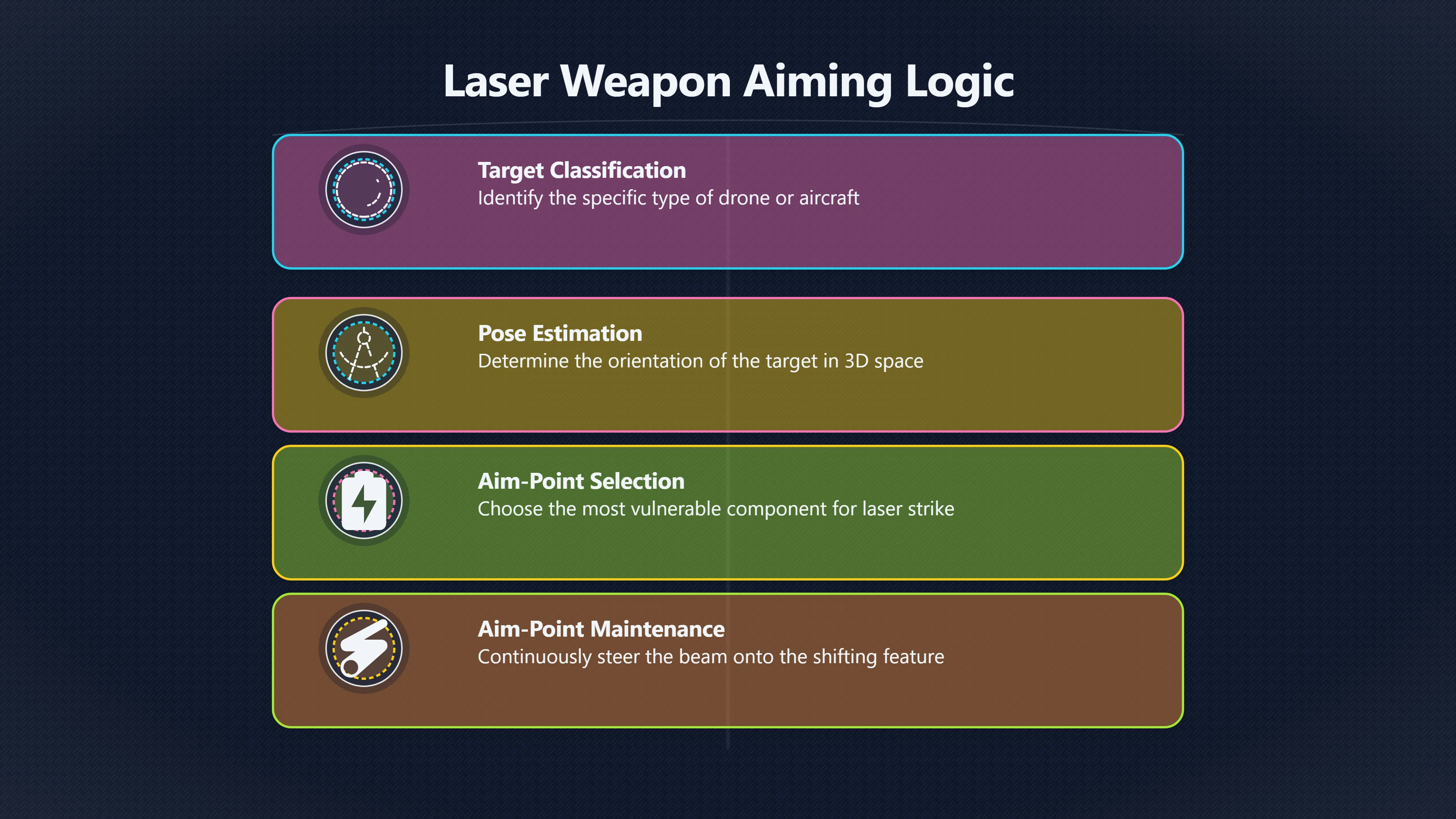

Recent naval research into AI-assisted laser weapons explicitly identifies target classification, pose estimation, aim-point selection, and aim-point maintenance as linked tasks. The logic is straightforward: a system cannot reliably choose the best damage point unless it first understands how the target is oriented. [U.S. Navy]navy.milnps develops ai solution to automate drone defense with high energy lasersU.S. NavyNPS Develops AI Solution to Automate Drone Defense with…12 Feb 2025 — By improving target classification, pose estimation, ai…
Why Pose Errors Waste Laser Energy
A pose estimate does not have to be completely wrong to reduce effectiveness. Even modest orientation errors can place the beam on the wrong part of a small target.
Suppose the tracking system believes a drone is level when it is actually banked several degrees. The predicted location of a battery pack or motor housing may be displaced enough that the beam spends its dwell time heating nearby structure instead. Because laser damage depends on sustained energy deposition, such errors can increase the time required to achieve an effect or prevent the desired effect altogether. [Google Patents+2MDPI]patents.google.comFurther, the laser tracking system is able to maintain a…Read more…
This sensitivity explains why researchers treat pose estimation as a sensor problem rather than a cosmetic enhancement. Determining orientation is part of determining where the energy should go.
The Hidden Link Between Tracking and Damage
The most important insight is that a laser engagement is not fundamentally about keeping a target inside a tracking box. It is about keeping heat concentrated on the correct physical feature.
As a target manoeuvres, its vulnerable components move relative to the observer. A drone can remain perfectly centred while the battery compartment, sensor turret, motor assembly, or control electronics migrate across the image. The best laser aim point therefore moves with the target’s pose. Effective laser weapons must estimate that pose, predict where the desired feature has shifted, and continuously steer the beam to follow it. In that sense, orientation tracking is not a supporting function of laser combat—it is one of the mechanisms that determines whether the delivered energy produces meaningful damage at all. ResearchGate+3U.S. Navy+3Baird Maritime / Work Boat World [navy.mil]navy.milnps develops ai solution to automate drone defense with high energy lasersU.S. NavyNPS Develops AI Solution to Automate Drone Defense with…12 Feb 2025 — By improving target classification, pose estimation, ai…
