Introduction

Microwave spillover hazards do not end at the edge of a directed beam. In crowded military sites, ports, airbases, urban operating areas and shipyards, the surrounding environment can redirect microwave energy in ways that are difficult to predict. Buildings, vehicles, fences, shipping containers, aircraft, masts and other conductive structures can reflect or scatter electromagnetic energy, creating indirect paths that expose friendly electronics outside the intended engagement zone. This matters because high-power microwave systems are designed to interact with electronics, and even reduced levels of reflected energy may still couple into antennas, cables and sensitive subsystems. Wider-beam microwave weapons are already recognised as posing area effects that can influence assets “whether friend or foe”, making environmental reflections an important operational concern. [GAO]gao.govgao 23 106717Science & Tech Spotlight: Directed Energy Weapons25 May 2023 — For example, wider beam DEWs, such as high power microwave or millimete…Published: May 2023

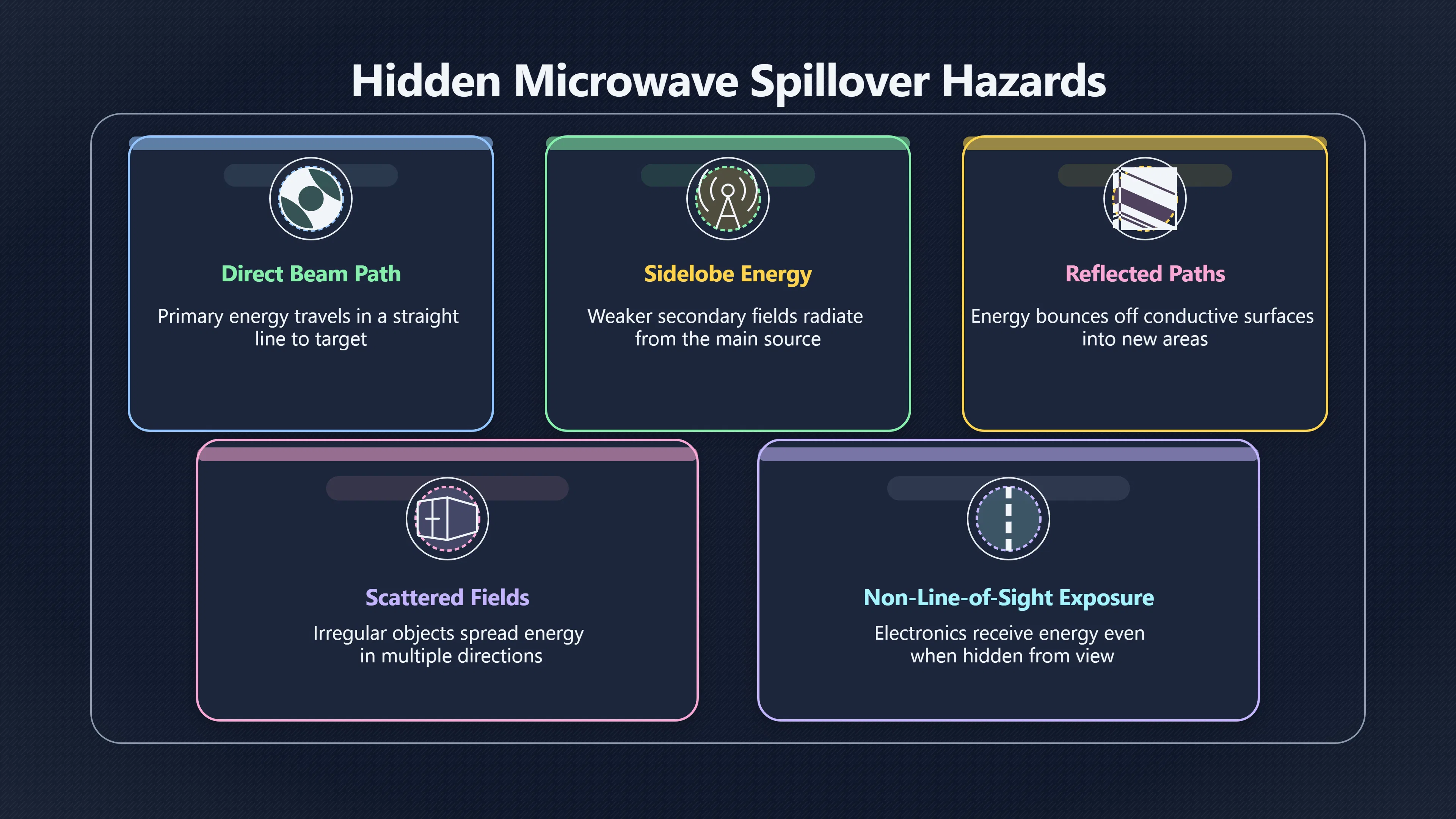

Reflections illustration 1

Main Beam, Sidelobes and Indirect Paths

The simplest hazard occurs when equipment sits inside the main beam. In reality, however, electromagnetic energy rarely travels through operational environments as a single clean line. Microwave systems generate a complex field structure that includes the main beam, weaker sidelobes and energy that is redirected after striking surrounding objects. [Office of Naval Research]onr.navy.milOffice of Naval ResearchDirected Energy Weapons: High Power MicrowavesHPM weapons create beams of electromagnetic energy over a broad spe…

Reflected energy can create several indirect exposure mechanisms:

  • Single-bounce reflections, where energy reflects from one conductive surface and reaches equipment outside the direct line of sight.
  • Multiple-bounce paths, where energy ricochets between structures before arriving at an unintended location.
  • Scattering from irregular objects, which spreads energy into many directions rather than producing a single mirror-like reflection.
  • Local field concentrations, where geometry causes energy to accumulate in particular areas.

These effects are familiar to radio-frequency engineers. Even ordinary radio environments become highly complex when buildings and metal structures create numerous reflection paths. International electromagnetic field guidance notes that environmental radio-frequency fields can be significantly altered by reflections from buildings and other structures. [InChem]inchem.orgElectromagnetic Fields (EHC 137, 1992)Additionally, the RF fields in the environment can be complex and may be affected by reflecti…

For military microwave systems, the consequence is that exposure risk cannot be estimated solely by drawing a straight line from emitter to target.

Laser and Microwave Weapons - Directed-Energy Weapon Programs, Potential, and Issues

Channel: Perun

Open on YouTube

Metal Surfaces in Dense Operating Areas

The environments most likely to produce reflection hazards are also the environments where modern military forces concentrate equipment.

A naval base, for example, may contain ships, cranes, fuel infrastructure, warehouses, vehicles and metal fencing within a relatively small area. Each structure can act as a reflector or scatterer. Military electromagnetic-environment standards explicitly recognise the importance of metallic ships, screened spaces and large conductive structures when assessing electromagnetic effects. [Waru University]waru.eduMIL STD 464DWaru UniversityMIL-STD-464D1 Dec 2010 — High-power microwave (HPM) sources…. metallic surface ships, the hull of a submarine, the scre…

Urban military operations present similar challenges. Consider a counter-drone microwave engagement near:

  • Aircraft shelters.
  • Hangars clad in metal panels.
  • Vehicle parks.
  • Communication towers.
  • Container storage areas.
  • Security fencing.

Instead of one beam path, the environment may generate numerous secondary paths. Some reflections lose substantial energy, but others may remain strong enough to interfere with nearby electronics, especially if those electronics contain efficient coupling routes such as antennas, external cables or long conductive wiring. Research into high-power microwave susceptibility repeatedly shows that coupling effectiveness can vary dramatically depending on the angle at which energy arrives. Changes of tens of decibels have been observed as the direction of incidence changes. [Academia]academia.eduPDF) Susceptibility of Electronic Systems to High-PowerAcademia(PDF) Susceptibility of Electronic Systems to High-Power …January 1, 2004 — In a reverberation chamber, the statistically isotr…

This means that a system apparently protected from the direct beam may still experience significant exposure if reflected energy arrives from a more favourable angle.

Reflections illustration 2

Why Ships Are Especially Challenging

Ships combine many characteristics that complicate microwave safety planning:

  • Extensive metallic surfaces.
  • Dense concentrations of antennas.
  • Complex superstructures.
  • Narrow operating spaces.
  • Large numbers of interconnected electronic systems.

A reflected path from a mast, deck structure or neighbouring vessel may illuminate equipment that was never intended to be within the engagement area. Because naval platforms already operate in dense electromagnetic environments, introducing high-power microwave systems requires careful electromagnetic compatibility analysis. [Waru University]waru.eduMIL STD 464DWaru UniversityMIL-STD-464D1 Dec 2010 — High-power microwave (HPM) sources…. metallic surface ships, the hull of a submarine, the scre…

Speed Gun Physics - Demonstrating the doppler effect with microwaves

Channel: Physics with Simon Poliakoff

Open on YouTube

Why Safe Standoff Zones Are Hard to Draw

Traditional safety planning often relies on geographic separation. The intuitive assumption is that equipment outside a designated zone should remain safe.

Reflections complicate that assumption.

A standoff boundary based only on the main beam ignores several realities:

  1. The environment changes. Vehicles move, aircraft are repositioned, containers are stacked differently and temporary structures appear.
  2. Reflective surfaces vary in orientation. A slight change in angle can alter where reflected energy travels.
  3. Different systems have different vulnerabilities. A communications antenna may be affected by exposure levels that have little effect on a ruggedised power system.
  4. Indirect exposure can arrive from unexpected directions. Equipment protected from the front may still receive energy from the side or rear through reflected paths.

Studies of electromagnetic fields in built environments show that enclosed and reflective settings often produce complicated field distributions rather than simple distance-based reductions. Research on radio-frequency exposure in confined environments similarly highlights that reflections can increase local field levels and make exposure patterns difficult to predict. [OUP Academic]academic.oup.comOUP AcademicEvaluating radiofrequency electromagnetic field exposure in…by M Ahsan Ashraf · 2024 · Cited by 12 — This study reviews re…

As a result, operational planners cannot assume that distance alone determines safety.

Reflections illustration 3

The Hidden Problem of Non-Line-of-Sight Exposure

One reason reflection hazards attract attention is that they can create non-line-of-sight effects.

Friendly electronics may be shielded by a wall, vehicle or building from the direct beam. Yet a nearby reflective structure can redirect part of the microwave energy around the obstruction. The resulting exposure is often weaker than direct illumination, but weaker does not necessarily mean harmless.

High-power microwave effects depend not only on field strength but also on how effectively energy couples into a device. Sensitive electronics can experience disruption when energy enters through antennas, sensor apertures, communication links or wiring harnesses. Unprotected systems inside buildings can also remain vulnerable to sufficiently strong microwave fields, illustrating that physical separation alone does not guarantee immunity. [Fraunhofer Publica]publica.fraunhofer.deFraunhofer PublicaHigh power microwaves - measures and countermeasuresIn particular, IT-systems exposed to HPM are at great risk, and unp…

The operational consequence is that planners must think in terms of electromagnetic geometry rather than simple visual geometry. Equipment hidden from sight may not be hidden from the electromagnetic environment.

Reflection Risk as an Operational Planning Problem

The central challenge is not that reflections make microwave systems unusable. Rather, reflections reduce predictability.

In open terrain, microwave spillover can often be approximated using beam geometry and distance. In dense operating areas, reflected and scattered energy introduces uncertainty. The more conductive structures present, the harder it becomes to forecast exactly where energy will travel and which systems may receive unintended exposure. [InChem]inchem.orgElectromagnetic Fields (EHC 137, 1992)Additionally, the RF fields in the environment can be complex and may be affected by reflecti…

This is why electromagnetic compatibility assessments, modelling and environmental surveys become increasingly important when microwave systems operate near friendly assets. The key risk is not simply the power of the weapon itself, but the fact that surrounding infrastructure can redirect part of that power into places that were never intended to be illuminated. In crowded bases, ports and urban military sites, spillover therefore becomes an environmental problem as much as a beam-control problem. [GAO+2Office of Naval Research]gao.govgao 23 106717Science & Tech Spotlight: Directed Energy Weapons25 May 2023 — For example, wider beam DEWs, such as high power microwave or millimete…Published: May 2023
