The Hidden Skill Behind Laser Precision

The real challenge is not only making a powerful beam, but keeping it steady on the right part of a moving target.

On this page

  • Why the aim point matters more than a simple hit
  • How sensors, mirrors and beam directors work together
  • What happens when jitter spreads heat across the target
Preview for The Hidden Skill Behind Laser Precision

Introduction

A high-energy laser is often described as a powerful beam of light, but in practice its effectiveness depends just as much on its ability to hold that beam on exactly the right spot. The hidden weapon inside a laser weapon is therefore not only the laser source itself but the aim-point tracking system that continuously decides where the beam should land and keeps it there despite target motion, platform vibration, atmospheric distortion and mechanical disturbances. Military laser programmes routinely describe target acquisition, tracking and aim-point selection as core weapon functions rather than supporting features. [SMD Army]smdc.army.milSMD Army HEL TDArmy Space and Missile Defense CommandJuly 13, 2023 — The HEL TD advanced technology objective will demonstrate target acquisition, track…Published: July 13, 2023

Aim Point illustration 1 This distinction matters because a laser usually causes damage through accumulated heating. If the beam wanders across a target instead of remaining on a vulnerable location, the energy is spread out and the desired effect may never occur. In many engagements, the challenge is less about generating light and more about maintaining a stable, accurate aim point for the required dwell time. [Google Patents]patents.google.comGoogle PatentsHigh-energy laser atmospheric compensation and…10 Jul 2012 — A high-energy laser weapon system in which the high-energy…

Why the Aim Point Matters More Than a Simple Hit

Conventional weapons often achieve useful effects simply by arriving near a target. Laser weapons operate differently. A laser must concentrate energy on a specific area long enough for temperature to rise to a damaging level. The question is not merely whether the target has been hit, but whether the correct component is receiving sufficient energy.

For many aerial targets, the best aim point may be a sensor window, control surface, battery compartment, seam, radome or another vulnerable feature. A hit on a less critical area can produce little effect even when the beam remains on the target as a whole. This is why military beam-control systems incorporate aim-point selection rather than simple line-of-sight tracking. The U.S. Army’s High Energy Laser Technology Demonstrator programme explicitly identified target acquisition, tracking and aim-point selection as essential functions of the weapon system. [SMD Army]smdc.army.milSMD Army HEL TDArmy Space and Missile Defense CommandJuly 13, 2023 — The HEL TD advanced technology objective will demonstrate target acquisition, track…Published: July 13, 2023

The problem becomes more difficult when the target is manoeuvring. A drone banking in flight continuously changes its orientation. The ideal vulnerability may move across the visible image even while the target remains centred in the tracking camera. Advanced laser fire-control systems therefore attempt to track not only the target’s position but also the desired impact location on the target itself. [ResearchGate]researchgate.netResearch Gate Pointing/tracking control design for a high energy laserPointing/tracking control design for a high energy laser…July 1, 2014 — Image-based unmanned aerial vehicle (UAV) pose est…Published: July 1, 2014

A useful way to think about laser combat is that the weapon is conducting a precision thermal process at long range. The laser source supplies energy, but the tracking system determines where that energy accumulates.

How Sensors, Mirrors and Beam Directors Work Together

Maintaining an aim point requires several subsystems operating as a single control loop.

Seeing the Target

The process begins with sensors. Electro-optical and infrared cameras detect the target, measure its movement and provide continuous updates about its location. Tracking software estimates where the target will be moments later and commands the optical system to follow it. Modern beam-control systems are designed specifically to measure and track fast-moving targets with sufficient precision for laser engagement. [DLR Electronic Library]elib.dlr.de20160926 f IB Manuscript SPIE EdinburghFurthermore the beam control system should track the target with high…Read more…

Some systems also attempt to identify target orientation or specific features. Research into laser beam-control testbeds has explored automated recognition of target pose so that aim-point selection can be tied to the geometry of the target rather than simply its centre. [ResearchGate]researchgate.netResearch Gate Pointing/tracking control design for a high energy laserPointing/tracking control design for a high energy laser…July 1, 2014 — Image-based unmanned aerial vehicle (UAV) pose est…Published: July 1, 2014

We Built an Ai Laser that Destroys Moving Targets!

Channel: Tech Ingredients

Open on YouTube

Steering the Beam

The visible turret or telescope is only part of the pointing mechanism. Inside the beam director are rapidly moving optical elements that make tiny corrections many times per second.

Fast steering mirrors are particularly important. These mirrors make extremely small angular adjustments that shift the beam’s location on the target while compensating for vibration and tracking error. Research literature on laser beam steering repeatedly identifies minimising beam jitter as a central requirement because even small disturbances can move the laser away from its intended impact point. [ResearchGate]researchgate.netBeam control for high-energy laser devicesthe LBS control system must maintain the aiming point in the target plane while min…

Beam directors integrate sensors, mirrors, gimbals and control electronics into a unified pointing assembly. Naval and airborne laser programmes place special emphasis on agile beam directors because they must maintain accuracy while operating on moving platforms exposed to vibration and environmental disturbances. [Navy SBIR]navysbir.comOpen source on navysbir.com.

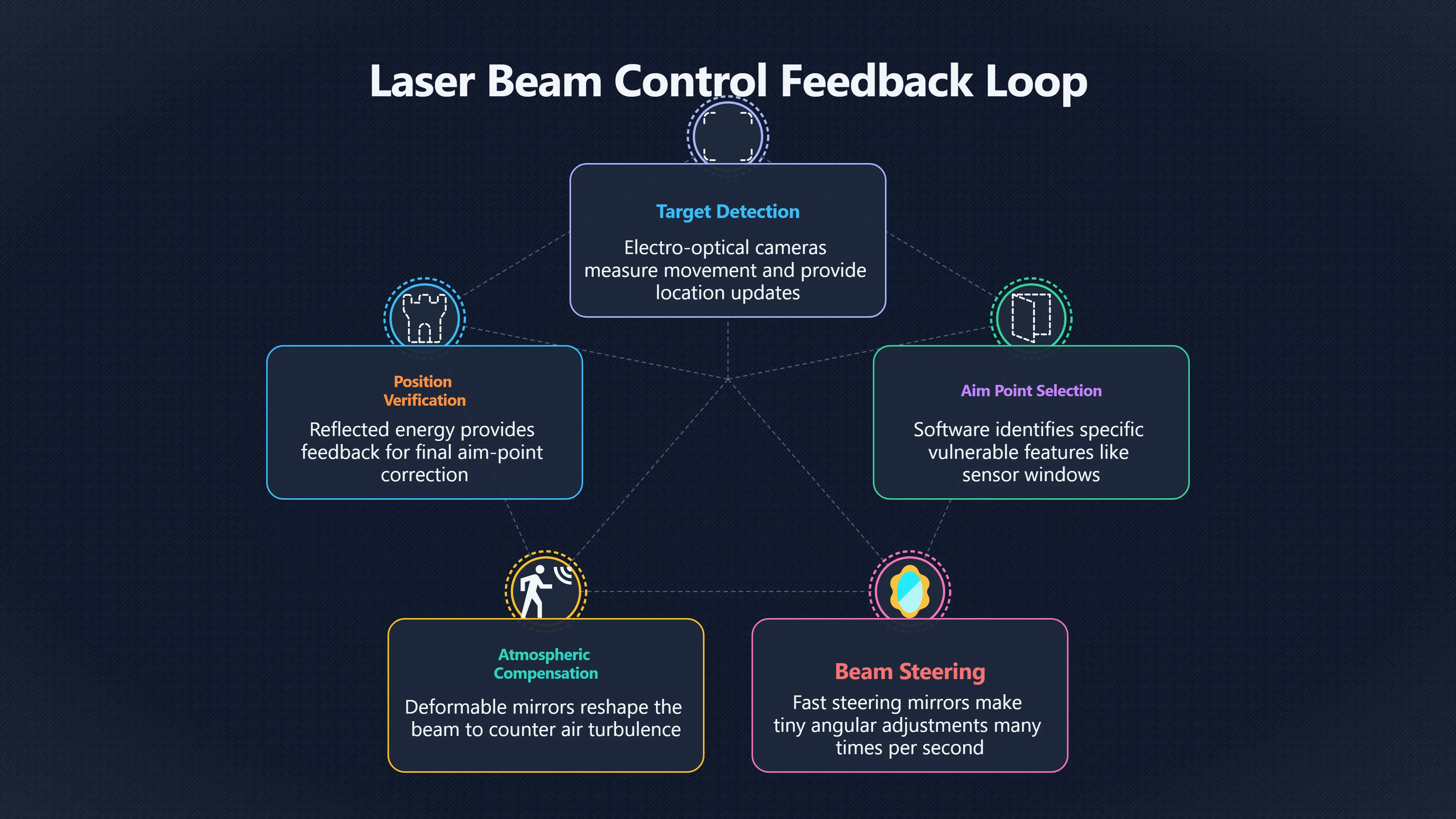

Closing the Feedback Loop

A key challenge is knowing where the high-energy beam is actually landing. Some laser concepts use return signals from the target itself to estimate beam position and atmospheric effects. Patented U.S. Air Force work on atmospheric compensation and aim-point maintenance describes using the laser’s own reflected energy as feedback for wavefront sensing and aim-point correction rather than relying entirely on separate tracking lasers. [Google Patents]patents.google.comGoogle PatentsHigh-energy laser atmospheric compensation and…10 Jul 2012 — A high-energy laser weapon system in which the high-energy…

This feedback loop is what transforms a laser from a bright beam into a weapon capable of sustained precision. The system is continuously asking three questions:

  • Where is the target?
  • Where is the desired aim point?
  • Where is the beam actually landing?

The answers must be updated constantly throughout the engagement. [Google Patents]patents.google.comGoogle PatentsHigh-energy laser atmospheric compensation and…10 Jul 2012 — A high-energy laser weapon system in which the high-energy…

Aim Point illustration 2

What Happens When Jitter Spreads Heat Across the Target

The greatest enemy of laser effectiveness is often not insufficient power but insufficient stability.

Jitter refers to small, rapid beam movements caused by vibration, tracking error, atmospheric turbulence or imperfections in the optical system. Even tiny angular deviations can translate into significant movement of the laser spot at long range. Beam-control research consistently treats jitter reduction as a primary design requirement because the objective is to maintain the aim point while disturbances act on the system. [ResearchGate]researchgate.netBeam control for high-energy laser devicesthe LBS control system must maintain the aiming point in the target plane while min…

The consequences are straightforward. Imagine holding a magnifying glass under sunlight. A stationary focal point quickly heats a surface. A constantly moving focal point spreads the energy and slows heating dramatically. Laser weapons face the same physical reality.

When jitter causes the beam to wander:

  • Peak temperature rises more slowly.
  • Heat is distributed over a larger area.
  • Vulnerable components may never reach failure temperature.
  • Required dwell time increases.
  • Atmospheric effects have more opportunity to degrade performance.

The result can be a target that absorbs substantial energy yet remains operational because the energy was not concentrated long enough at the correct location. [Google Patents]patents.google.comGoogle PatentsHigh-energy laser atmospheric compensation and…10 Jul 2012 — A high-energy laser weapon system in which the high-energy…

This is one reason why improvements in beam control can sometimes produce operational gains comparable to increases in laser power. Better tracking effectively delivers more useful energy to the desired spot without increasing the laser’s output.

LOCUST® X3 Modular Directed Energy Laser Weapon System

Channel: AV

Open on YouTube

Atmospheric Distortion Turns Tracking into a Moving Problem

Even a perfectly stable turret faces another challenge: the atmosphere.

Air is not optically uniform. Temperature variations, turbulence and density changes bend and distort light as it travels. These effects can cause the beam to wander or blur, shifting energy away from the intended aim point.

Modern directed-energy systems address this problem through adaptive optics. Wavefront sensors measure distortion along the optical path, while deformable mirrors reshape the outgoing beam to compensate. The goal is not merely to improve image quality but to keep the laser’s energy concentrated on the chosen impact location. [Google Patents+2AIAA Journal]patents.google.comGoogle PatentsHigh-energy laser atmospheric compensation and…10 Jul 2012 — A high-energy laser weapon system in which the high-energy…

This creates another layer of complexity. The tracking system is no longer following only a moving target; it is compensating for a constantly changing atmosphere at the same time. In practical terms, the aim point is moving because the target is moving and because the optical path itself is changing.

Watch This UK Laser Destroy Drones Instantly!

Channel: Wes O'Donnell

Open on YouTube

DragonFire and the Public Demonstration of Tracking Precision

Public discussion of laser weapons often focuses on power levels, but recent DragonFire demonstrations have highlighted the importance of tracking performance.

Official statements surrounding DragonFire emphasise ultra-precise pointing, tracking accuracy and stability as critical engineering challenges. Leonardo, which provides the system’s beam director, describes the requirement to deliver extremely precise tracking and pointing performance at long range in varied conditions. [Leonardo UK]uk.leonardo.comUKDragon Fire – Laser Directed Energy WeaponLeonardo UKDragonFire – Laser Directed Energy Weapon - Leonardo UKThe technology is critical to DragonFire and presents a major engineeri…

Recent UK trials demonstrated above-the-horizon tracking, targeting and destruction of drones travelling at speeds up to roughly 650 km/h. Government statements also highlighted the system’s ability to achieve coin-sized precision at a kilometre. Those claims are impressive not because a laser beam can travel in a straight line, but because the fire-control system can continuously place and maintain that beam on a rapidly moving target. [Defence Equipment & Support+2Tom's Hardware]des.mod.ukboost for armed forces as new laser weapon takes down high speed dronesDefence Equipment & SupportBoost for Armed Forces as new laser weapon takes down…20 Nov 2025 — Britain's ground-breaking DragonFire la…

The public narrative often treats the laser as the breakthrough. The engineering reality is that such engagements represent a combined achievement in sensing, tracking, beam control, stabilisation and aim-point maintenance.

Aim Point illustration 3

The Hidden Precision Tradeoff

The central precision tradeoff in laser weapons is often misunderstood. More power helps, but power alone does not guarantee effectiveness. A laser must place energy on a specific location and keep it there.

As a result, laser weapon development has evolved into a beam-control challenge as much as a laser-generation challenge. Military programmes, beam-director designers and adaptive-optics researchers consistently focus on tracking, stabilisation and aim-point maintenance because these functions determine whether the beam’s energy is concentrated or wasted. Air Power Australia+3SMD Army+3Navy SBIR [smdc.army.mil]smdc.army.milSMD Army HEL TDArmy Space and Missile Defense CommandJuly 13, 2023 — The HEL TD advanced technology objective will demonstrate target acquisition, track…Published: July 13, 2023

The hidden skill behind laser precision is therefore not simply producing an intense beam of light. It is maintaining a tiny, moving point of energy on exactly the right place for exactly the right amount of time. When that skill succeeds, the laser appears extraordinarily effective. When it fails, even a powerful beam can become little more than scattered heat. [Google Patents]patents.google.comGoogle PatentsHigh-energy laser atmospheric compensation and…10 Jul 2012 — A high-energy laser weapon system in which the high-energy…
