Introduction
Friendly radios are among the most exposed electronic systems when high-power microwave energy spills beyond its intended target area. The reason is straightforward: a radio’s antenna is designed to collect electromagnetic energy from the environment and deliver it efficiently into sensitive receiver circuits. A microwave weapon does not distinguish between hostile and friendly equipment. If a radio antenna intercepts part of the microwave field, the radio can unintentionally become a highly effective entry point for that energy. In electromagnetic-effects research, this is known as “front-door coupling” because the energy enters through the system’s intended signal path rather than forcing its way through shielding or cables. Radios therefore occupy a special place in discussions of microwave spillover risk, often facing greater vulnerability than electronics that lack external antennas. [NATO Store+2Academia]sto.nato.intWireless systems are particularly vulnerable due to the inherent possibility of front-door coupling through antenna elements.Read more…
Why Antennas Act as a Front Door
A radio receiver is built around the assumption that weak electromagnetic signals arriving at the antenna should be gathered and amplified. Under normal conditions this is exactly what allows communications to work over long distances. During microwave spillover, however, the same design principle can become a liability.
Research on high-power microwave effects consistently identifies antennas and sensors as primary front-door coupling paths. Rather than needing to penetrate an enclosure, the microwave energy is accepted by the antenna and routed directly into the receiver chain. Because the antenna is already matched to receive electromagnetic energy efficiently, even spillover levels far below the intensity at the source can produce significant voltages at sensitive receiver inputs. [Academia+2ResearchGate]academia.eduPDF) Susceptibility of Electronic Systems to High-Power …Both front-door and back-door coupling mechanisms significantly influence eleFuture investigations must focus on complex …Read more
The effect is often strongest when the incoming microwave energy overlaps with frequencies that the radio can receive. In that case the antenna and receiver effectively help collect the unwanted energy. Even when frequencies do not exactly match, coupling can still occur through nonlinear behaviour in receiver components and antenna structures, allowing microwave pulses to reach internal circuitry. Researchers classify both situations as forms of front-door coupling. [Academia]academia.eduPDF) Susceptibility of Electronic Systems to High-Power …Both front-door and back-door coupling mechanisms significantly influence eleFuture investigations must focus on complex …Read more

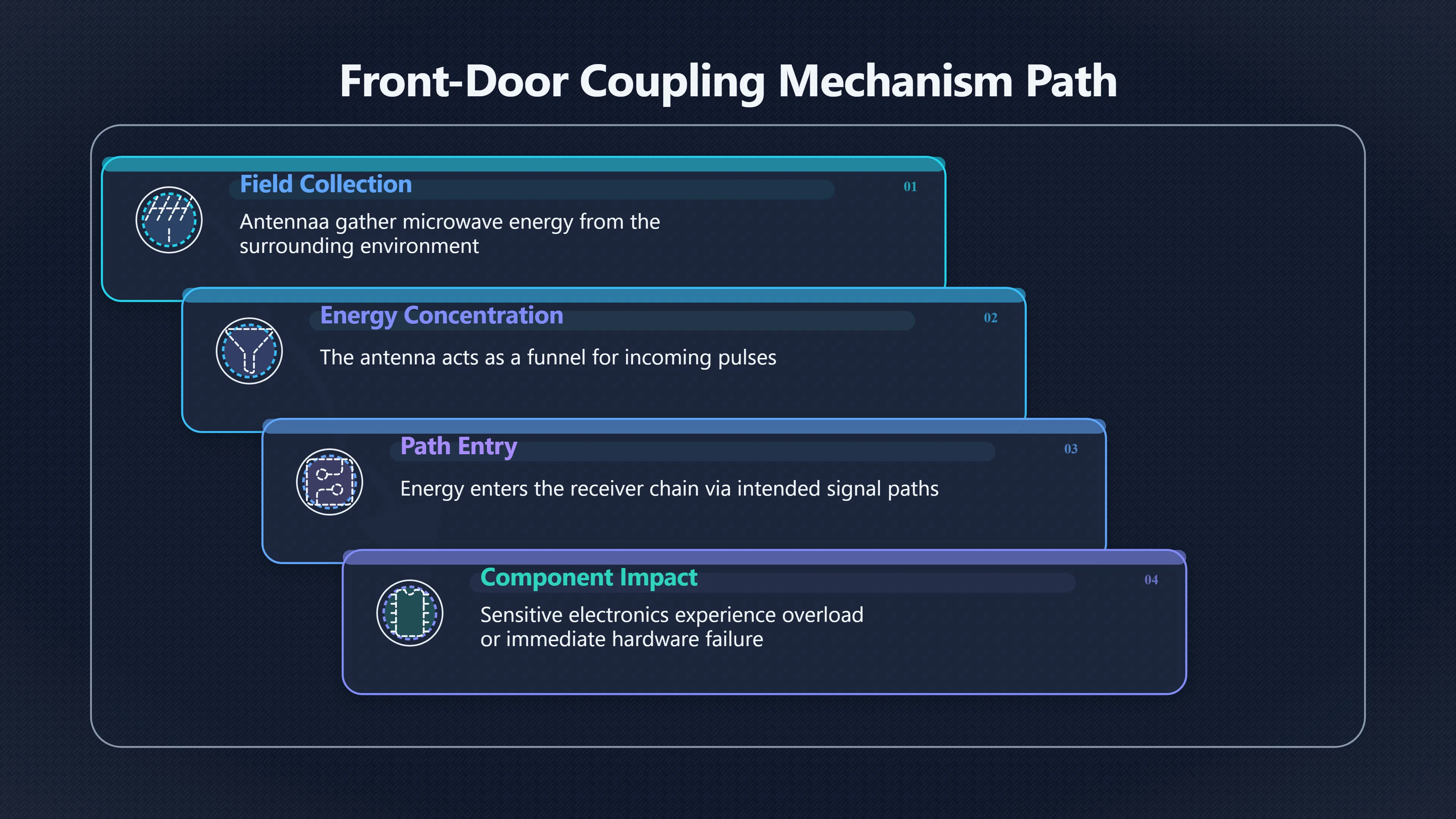

A useful way to think about the problem is that the antenna behaves like a funnel. The microwave field may be spread across a wide area, but the antenna concentrates part of that energy into a narrow electrical path leading directly to the receiver.
Receiver Electronics and Sudden Resets
Once microwave energy enters through the antenna, the first components exposed are usually the receiver front end. These circuits are deliberately designed to detect signals that may be only fractions of a microvolt above background noise. As a result, they are far more sensitive than most other electronics inside the same platform. NATO analyses of electromagnetic vulnerability note that wireless systems are particularly exposed because of this antenna-based coupling route. [NATO Store]sto.nato.intWireless systems are particularly vulnerable due to the inherent possibility of front-door coupling through antenna elements.Read more…
Several failure modes can follow:
- Temporary receiver desensitisation, where legitimate signals become difficult or impossible to detect.
- Gain compression, in which amplifiers stop behaving linearly because the incoming signal is too strong.
- Receiver overload that causes software faults, communication dropouts or automatic resets.
- Damage to front-end components such as low-noise amplifiers and mixers.
- Long-term degradation of receiver performance even when complete failure does not occur. [ResearchGate+2FOI]researchgate.netSusceptibility of Electronic Systems to High-Power…HPM can penetrate the receiver chain through the antenna port via "fron…
A particularly vulnerable component is the low-noise amplifier (LNA), normally positioned close to the antenna to boost weak incoming signals. Multiple studies by the Swedish Defence Research Agency (FOI) found that when high-power microwave energy enters through antennas, LNAs are often among the first components to fail because they sit directly in the energy path and operate with extremely sensitive semiconductor structures. [FOI]foi.seFinal report: HPMFinal report: HPM - skyddsmetoder för NBF.High Power Microwaves (HPM) is a brutal form of electronic warfare. penetrates through anten…
Importantly, visible destruction is not required for operational disruption. A communications radio may simply reboot, lose synchronisation, mute its receiver, or temporarily stop processing signals correctly. From an operator’s perspective, this can look like an ordinary communications outage even though the underlying cause is electromagnetic overload. [ResearchGate]researchgate.netSusceptibility of Electronic Systems to High-Power…HPM can penetrate the receiver chain through the antenna port via "fron…
Why Radios Can Be More Vulnerable Than Other Electronics
Many electronic devices are protected by metal enclosures, filtered cables and shielded compartments. Radios possess those protections as well, but they must also maintain a deliberate opening to the outside world: the antenna.
This requirement creates a difficult engineering trade-off. A receiver must remain sensitive enough to hear weak signals while also surviving unusually strong signals. Complete shielding of the antenna path would defeat the radio’s purpose. Researchers therefore describe front-door coupling as especially challenging because the entry path cannot simply be sealed without degrading system performance. [Academia+2MDPI]academia.eduPDF) Susceptibility of Electronic Systems to High-Power …Both front-door and back-door coupling mechanisms significantly influence eleFuture investigations must focus on complex …Read more
The problem becomes even more significant in systems that rely on high-gain directional antennas, microwave radio links, satellite communications terminals or navigation receivers. These systems are intentionally optimised to collect radio-frequency energy efficiently, which can increase the amount of spillover energy delivered to sensitive electronics. Studies of electronic-system susceptibility have repeatedly found that front-door coupling through radio-frequency apertures can produce effects at greater distances than many back-door coupling mechanisms. [Academia]academia.eduPDF) Susceptibility of Electronic Systems to High-Power …Both front-door and back-door coupling mechanisms significantly influence eleFuture investigations must focus on complex …Read more
Protective Filtering Without Losing Signal
Because radios cannot simply disconnect their antennas, protection focuses on limiting damaging energy while preserving normal communications.
One common approach is the use of receiver protection devices known as limiters. These components sit near the receiver front end and allow ordinary signals to pass while reducing the amplitude of unusually strong incoming energy. Defence research programmes have devoted considerable effort to developing and testing such limiters specifically for high-power microwave environments. [FOI]foi.seInvestigation of HPM front-door protection devices and…This report also includes initial results from LNA (Low Noise Amplifier) sus…
Additional protective measures include:
- Band-pass filtering that rejects frequencies outside the receiver’s operating range.
- Surge-protection networks designed for high-energy transients.
- Hardened low-noise amplifiers with greater tolerance to overload.
- Careful antenna placement and system-level electromagnetic shielding.
- Receiver architectures that temporarily isolate sensitive circuitry when excessive power is detected. [FOI]foi.seInvestigation of HPM front-door protection devices and…This report also includes initial results from LNA (Low Noise Amplifier) sus…
The challenge is balancing protection against performance. Aggressive filtering and protection can reduce sensitivity, increase signal loss or limit operational range. Military and aerospace communications systems therefore seek designs that preserve reception quality while preventing damaging energy from reaching the most vulnerable receiver components. [FOI]foi.seInvestigation of HPM front-door protection devices and…This report also includes initial results from LNA (Low Noise Amplifier) sus…
The Core Spillover Lesson
Within the broader problem of microwave spillover affecting friendly electronics, radios stand out because they already possess a purpose-built path for collecting electromagnetic energy. Their antennas act as front doors through which microwave spillover can enter, travel into receiver circuits and trigger anything from brief communication interruptions to permanent front-end damage. The same engineering features that make radios effective communication tools—sensitivity, amplification and efficient antennas—also make them among the most exposed systems when unintended microwave energy is present. [ResearchGate+3NATO Store+3Academia]sto.nato.intWireless systems are particularly vulnerable due to the inherent possibility of front-door coupling through antenna elements.Read more…
