When Cables Become Unintended Antennas
A cable is fundamentally a conductor placed in an electromagnetic environment. When a microwave field passes across it, electric and magnetic fields induce currents and voltages along the conductor. In effect, the cable begins behaving like an unintended receiving antenna. The collected energy then travels along the wire toward connected equipment. [ResearchGate+2hplpb.com.cn]researchgate.netResearch Gate Susceptibility of Electronic Systems to High-Power …wire harnesses acting as unintentional receiving antennas susceptibilResearchGateSusceptibility of Electronic Systems to High-Power …wire harnesses acting as unintentional receiving antennas susceptibilit…
This mechanism matters because modern electronic systems are rarely isolated. A protected radio may be connected to an external antenna feed. A vehicle computer may connect to dozens of sensors through harnesses running throughout the platform. A command post computer may be linked to external power and communications networks. Each cable creates a potential coupling path through which microwave energy can bypass part of the protection provided by the enclosure itself. [EMPCommission.org+2ETS-Lindgren]empcommission.orgm the many antennae (cable connections) that may compromise…
Research on high-power electromagnetic environments repeatedly identifies field-to-cable coupling as a key source of induced voltages. Even when the primary equipment remains shielded, energy collected by external wiring can be conducted into internal electronics where voltages become concentrated at circuit inputs, interfaces and semiconductor components. [hplpb.com.cn+2Re.Public Polimi]hplpb.com.cnSimulation and experimental study on high power…by X Tian · 2025 · Cited by 6 — High power microwave is easy to enter the system throu…

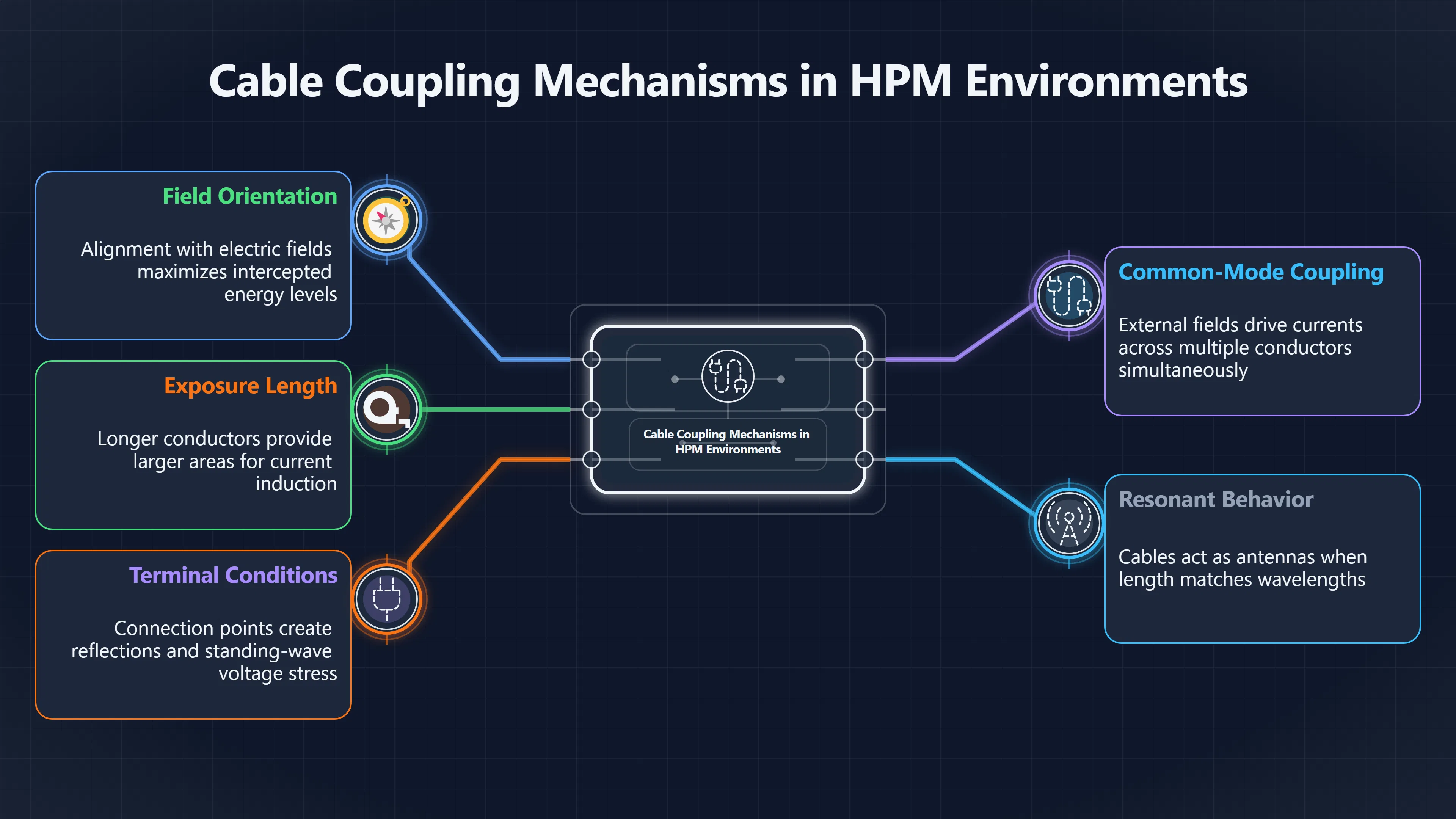

How Wiring Collects Electromagnetic Energy
The amount of energy coupled into a cable depends on several physical factors.
Orientation to the incoming field. A cable aligned favourably with the incident electric field generally intercepts more energy than one oriented differently. This is one reason susceptibility varies with geometry and installation details. [Re.Public Polimi]re.public.polimi.itWorst-Case Wideband Radiated IEMI for Unshielded and…by T Liang · Cited by 19 — This work deals with Intentional Electromagnetic…
Exposure length. Longer exposed conductors provide a larger structure on which electromagnetic fields can induce currents. Cable runs extending across vehicles, buildings or equipment bays therefore present larger collection areas than short internal jumpers. [Oak Ridge National Laboratory+2LinkedIn]impact.ornl.goveffects on structures electromagnetic shielding effectiveness conOak Ridge National LaboratoryEffects on Structure's Electromagnetic Shielding…by DP Mignardot · 2024 · Cited by 2 — This work studies…
Terminal conditions. The way a cable is connected at each end influences how induced energy behaves. Reflections and standing-wave effects can increase voltages at specific points, sometimes producing higher stress at equipment interfaces than a simple field-strength estimate would suggest. [Re.Public Polimi]re.public.polimi.itWorst-Case Wideband Radiated IEMI for Unshielded and…by T Liang · Cited by 19 — This work deals with Intentional Electromagnetic…
Common-mode coupling. Energy does not always travel on the intended signal path. External fields often drive currents on the outside of cable shields or across multiple conductors simultaneously. These common-mode currents can later convert into damaging voltages inside equipment. [Re.Public Polimi]re.public.polimi.itWorst-Case Wideband Radiated IEMI for Unshielded and…by T Liang · Cited by 19 — This work deals with Intentional Electromagnetic…
The important point is that a cable does not need to be designed as an antenna to exhibit antenna-like behaviour. Under sufficiently strong electromagnetic illumination, ordinary wiring can become an efficient collector of energy. [Waru University+2ResearchGate]waru.eduAntenna Cables, Filters are commercially available. Filters protect cable/wireWaru UniversitySystem Electromagnetic Pulse Survivability and Hardening11 Mar 2023 — Acts as antennas, collects energy at resonant freque…
Why Cable Length and Routing Change Risk
Not all cables are equally vulnerable. Their physical dimensions and routing strongly influence how much microwave energy they collect.
Cable length is particularly important because conductors exhibit resonant behaviour. When a cable’s electrical length becomes comparable to a significant fraction of the incident wavelength, coupling efficiency can increase substantially. In electromagnetic compatibility engineering, long cables are widely recognised as becoming more effective unintended antennas as their length approaches relevant wavelengths. [LinkedIn]linkedin.comHow Cable Length Affects EMC Test Results1. Antenna Effects Cables can unintentionally act like antennas when their length become…
Recent modelling of HPM interactions with cables found that cable length is among the most influential parameters affecting induced responses. Studies examining both exposed cables and cables penetrating shielded structures similarly report strong sensitivity to conductor length. [hplpb.com.cn]hplpb.com.cnSimulation and experimental study on high power…by X Tian · 2025 · Cited by 6 — High power microwave is easy to enter the system throu…
Routing also matters:
- Cables running through open areas generally collect more field energy than cables confined within well-shielded pathways.
- Large loops formed by cable routing can increase magnetic-field coupling.
- Cables routed near apertures, seams or penetrations in a shielded enclosure can exploit local field leakage.
- Bundled wiring harnesses may distribute coupled energy into multiple connected subsystems. [Hal Science+2Schneider Electric Help]hal.sciencepredict precise wire responses including EM…
These effects help explain why two otherwise identical pieces of equipment can respond differently to the same microwave exposure simply because their wiring installations differ.
Why Shielded Equipment Can Still Be Vulnerable
A common misconception is that placing electronics inside a metal enclosure eliminates microwave risk. Shielding is valuable, but cables often create openings in the protective barrier.
Every power feed, data line, sensor connection or communications cable crossing the enclosure boundary creates a penetration point. If electromagnetic energy is collected outside the enclosure and conducted inward through those connections, the shield no longer acts as a complete barrier. EMP and infrastructure-hardening studies frequently describe cable connections as pathways through which external electromagnetic energy can infiltrate otherwise protected systems. [EMPCommission.org+2ETS-Lindgren]empcommission.orgm the many antennae (cable connections) that may compromise…
Research on shielding effectiveness has shown that penetrating cables can significantly reduce the protection offered by a structure, with cable length emerging as a particularly influential factor. [Oak Ridge National Laboratory]impact.ornl.goveffects on structures electromagnetic shielding effectiveness conOak Ridge National LaboratoryEffects on Structure's Electromagnetic Shielding…by DP Mignardot · 2024 · Cited by 2 — This work studies…
This is why microwave spillover can affect electronics that are not directly illuminated by the strongest portion of a beam. The critical issue is often not the exposure of the box itself, but the exposure of the conductors connected to it.
Grounding and Filtering as Practical Defences
Because cables are a primary coupling path, protection strategies focus heavily on controlling what enters through those conductors.
Filtering at Entry Points
Filters installed where cables enter protected equipment or facilities are designed to block high-frequency energy while allowing normal power and signals to pass. In EMP and electromagnetic-hardening practice, power-line and signal-line filters are widely used to prevent conducted electromagnetic energy from reaching sensitive electronics. [ETS-Lindgren+2www.emcnoordin.com]ets-lindgren.comEMP SolutionsRF Power and Signal Line Filters. Uniquely designed power and signal line filters blocked conducted EMP from ent…
The principle is straightforward: attenuate unwanted high-frequency energy before it reaches vulnerable circuits.
Grounding and Bonding
Proper grounding and bonding help provide controlled paths for unwanted currents and reduce voltage differences that can drive damaging common-mode currents. Electromagnetic compatibility standards and engineering guidance consistently treat grounding and bonding as core techniques for reducing coupling and improving immunity. [ETSI+2IEC]etsi.orgEN 300 386 - V1.5.1 - Electromagnetic compatibility and…measurement techniques - Radiated, radio-frequency, electromagnetic field…
Shielded and Fibre-Optic Links
Shielded cables can reduce coupling, although shielding effectiveness depends on installation quality and termination. In some critical applications, fibre-optic links eliminate the conducted electrical path entirely because they transmit information using light rather than electrical current. Government guidance on electromagnetic resilience highlights fibre-optic connections as a useful mitigation technique for reducing conducted electromagnetic threats. [Department of Homeland Security]dhs.govPOEs can be protected by shielded cables orDepartment of Homeland SecurityElectromagnetic Pulse Shielding MitigationsElectric fields levels can be reduced through EM reduction tech…
Careful Cable Routing
Simple installation decisions can matter significantly. Separating signal cables from high-energy conductors, minimising unnecessary cable length, avoiding large loops and controlling penetrations through shielded boundaries all help reduce coupling opportunities. These practices are standard elements of electromagnetic compatibility design. [Schneider Electric Help]product-help.schneider-electric.comReduces mutual interference. Keep…Read more…
The Key Implication for Microwave Spillover
For friendly electronics operating near high-power microwave systems, vulnerability is not determined solely by whether the equipment sits inside the beam. The wiring connected to that equipment may extend far beyond the protected enclosure and into regions where electromagnetic fields are stronger. Those cables can collect microwave energy, conduct it inward and concentrate it at sensitive electronic interfaces. Consequently, assessing spillover risk requires examining the entire connected system—including power lines, data cables and wiring harnesses—not just the protected device itself. [hplpb.com.cn+2EMPCommission.org]hplpb.com.cnSimulation and experimental study on high power…by X Tian · 2025 · Cited by 6 — High power microwave is easy to enter the system throu…
