Introduction
Microwave counter-drone systems can disable hostile drones without firing conventional munitions, but the same electromagnetic energy that affects a target drone can also affect nearby electronics. For that reason, operators establish exclusion zones: defined areas where people, vehicles, radios, sensors, communications equipment, and other electronic systems must not be present during a microwave engagement. Rather than treating collateral electronic effects as an unpredictable hazard, exclusion zones convert the risk into a managed geographic boundary with clear operating rules. Military electromagnetic-effects standards and safety practices increasingly emphasise defined separation distances, electromagnetic-environment assessments, and control measures before high-power emitters are used. [waru.edu+2sde-uk.com]waru.eduMIL STD 464DMIL-STD-464D1 Dec 2010 — This standard is approved for use by all Departments 3.13 High power microwave (HPM). electronics demand that ef…
In practice, an exclusion zone is not simply a circle drawn around a weapon. It is a carefully modelled area that reflects the expected microwave beam shape, power level, local terrain, nearby infrastructure, and the vulnerability of surrounding electronics. The purpose is straightforward: ensure that only intended targets are exposed while reducing the chance of interference, disruption, or damage to friendly and civilian systems. [D-Fend Solutions+2waru.edu]d-fendsolutions.comKey challenge when mitigation drones with EMP/HPM: Significant collateral damage to electronics in.Read more…
What an exclusion zone has to protect
The primary challenge is that microwave energy interacts with electronics rather than with a specific category of object. A drone, a radio relay, an airfield sensor, a vehicle control module, or a communications antenna may all respond differently to the same electromagnetic exposure.

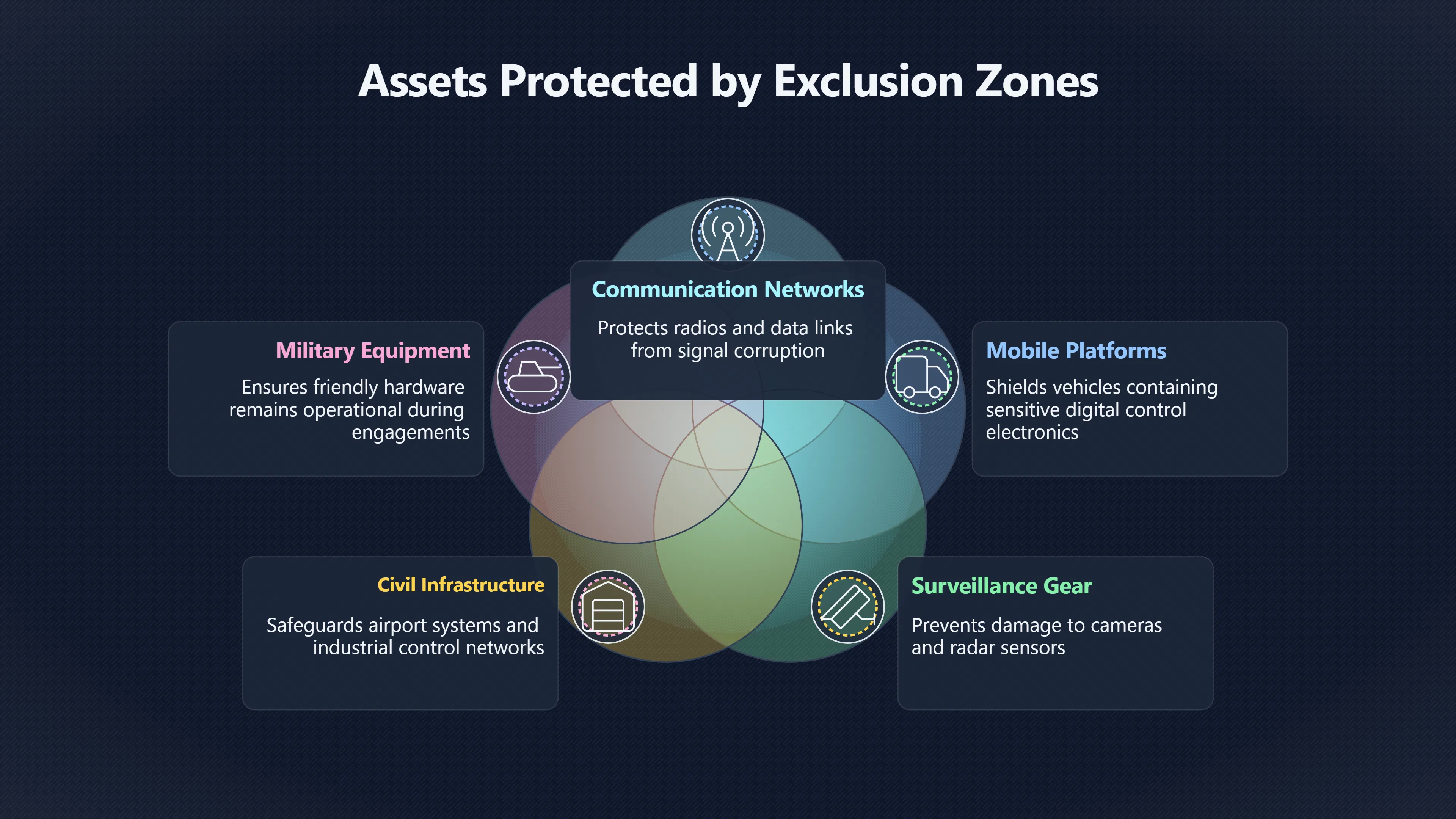

As a result, exclusion-zone planning typically considers several categories of assets:
- Mission-critical communications systems, including radios, data links, and network infrastructure.
- Vehicles and mobile platforms containing sensitive digital electronics.
- Surveillance and security equipment, such as cameras, radars, and electronic sensors.
- Civil infrastructure, including airport systems, emergency communications networks, and industrial control equipment.
- Friendly military equipment operating in the same battlespace. [D-Fend Solutions+2Research Briefings]d-fendsolutions.comKey challenge when mitigation drones with EMP/HPM: Significant collateral damage to electronics in.Read more…
The concern is not limited to permanent damage. Depending on exposure and system design, effects may range from temporary interference and data corruption to system resets or degraded performance. Because these outcomes can be difficult to predict precisely for every device in an operational environment, exclusion zones are often designed with safety margins rather than relying solely on theoretical minimum distances. [waru.edu+2sde-uk.com]waru.eduMIL STD 464DMIL-STD-464D1 Dec 2010 — This standard is approved for use by all Departments 3.13 High power microwave (HPM). electronics demand that ef…
An important governance principle emerges here: the boundary is usually driven by the most vulnerable protected asset, not by the average device in the area. If a critical communications node or air-traffic-support system sits near a planned engagement area, the exclusion zone may expand considerably even if most surrounding electronics are relatively robust. [sde-uk.com+2PMC]sde-uk.comThe Impact of the Electromagnetic Environment on…23 Apr 2025 — This includes risk assessments, system performance validation, safe sep…
How distance, direction, and terrain shape the boundary
Exclusion zones are fundamentally electromagnetic maps. Their shape depends on where microwave energy is expected to be strongest and where it may propagate unintentionally.
Distance reduces risk but rarely defines the whole zone
Microwave energy generally weakens as distance from the emitter increases. This is the simplest reason exclusion zones exist: keeping electronics farther away reduces the likelihood of harmful exposure. Military electromagnetic-environment standards therefore place strong emphasis on separation distances and exposure assessments when high-power emitters are involved. [waru.edu+2sde-uk.com]waru.eduMIL STD 464DMIL-STD-464D1 Dec 2010 — This standard is approved for use by all Departments 3.13 High power microwave (HPM). electronics demand that ef…
However, distance alone does not determine safety. A sensitive antenna positioned within the main beam may be at greater risk than a more distant system located outside it. Operators therefore combine distance calculations with modelling of beam geometry and equipment susceptibility. [waru.edu+2Epirus]waru.eduMIL STD 464DMIL-STD-464D1 Dec 2010 — This standard is approved for use by all Departments 3.13 High power microwave (HPM). electronics demand that ef…
Direction matters because microwave systems are not equally powerful in all directions
Many counter-drone microwave systems use directional antennas to focus energy toward a threat. This concentration improves effectiveness while helping reduce exposure elsewhere. The result is often an exclusion zone that resembles a wedge, corridor, or fan-shaped area rather than a perfect circle. [robinradar.com+2Epirus]robinradar.comDrone-deployed nets have a long range and low risk of collateral damage.Read more…
This directional approach explains why operational guidance often emphasises keeping friendly electronics clear of the anticipated engagement sector rather than merely maintaining a uniform stand-off distance around the weapon. Systems located behind or well outside the main beam may face substantially lower risk than systems positioned directly along the beam path. [robinradar.com+2Epirus]robinradar.comDrone-deployed nets have a long range and low risk of collateral damage.Read more…
Terrain and structures can complicate predictions
Real environments rarely behave like open test ranges. Buildings, metallic structures, vehicles, and terrain features can reflect, scatter, or channel electromagnetic energy. These effects can create localised areas where exposure is higher or lower than expected from simple line-of-sight calculations. [Wikipedia+2JAPCC]WikipediaRapid DestroyerRapid Destroyer
For exclusion-zone planning, this means that a boundary developed for an open range may not be suitable for a dense industrial site, port facility, or urban district. Operators may need additional surveys, modelling, or restrictions to account for reflections and unexpected propagation paths. [Wikipedia+2sde-uk.com]WikipediaRapid DestroyerRapid Destroyer
Why urban sites are harder than ranges or bases
The most straightforward place to employ a microwave defence system is a controlled military environment. Bases, training ranges, and dedicated test facilities generally offer predictable terrain, controlled access, and known inventories of nearby electronics.
Urban environments present the opposite conditions.
A city contains thousands of electronic devices, communications systems, and networked services operating simultaneously. Nearby buildings may contain telecommunications equipment, medical electronics, commercial networks, industrial controls, and public-safety communications. Even when the intended target is a hostile drone, operators must consider whether microwave exposure could affect unrelated systems in the vicinity. This concern is one reason some counter-drone assessments identify collateral electronic effects as a major operational limitation for high-power microwave approaches. [D-Fend Solutions+2PMC]d-fendsolutions.comKey challenge when mitigation drones with EMP/HPM: Significant collateral damage to electronics in.Read more…
Airports illustrate the challenge particularly well. They combine radar systems, navigation aids, communications networks, security infrastructure, and large numbers of civilian electronic devices in a relatively concentrated area. Counter-drone measures are often needed around airports, yet the density of critical electronics makes exclusion-zone design far more demanding than on a remote range. [PMC]pmc.ncbi.nlm.nih.govDefending Airports from UAS: A Survey on Cyber-Attacks and…by G Lykou · 2020 · Cited by 362 — In this paper, we present a survey of…
Urban operations also raise governance questions. Authorities may need to coordinate among military units, airport operators, emergency services, telecommunications providers, and civilian regulators before defining acceptable exclusion zones. The technical boundary therefore becomes a policy boundary as well: a line that determines where electromagnetic risk is judged acceptable and where it is not. [Research Briefings+2NATO]researchbriefings.files.parliament.ukPOST PN 0749Research BriefingsElectromagnetic (electronic) warfare10 Jul 2025 — Essential military assets depend on electromagnetic radiation (such a…
Exclusion zones as a governance tool
Exclusion zones are often discussed as a technical safety measure, but they also function as a governance mechanism. They translate abstract electromagnetic risk into operational rules that commanders, regulators, and facility managers can enforce.
Typical controls include:
- Restricting the location of friendly vehicles and communications equipment during engagements.
- Defining approved firing sectors.
- Establishing protected infrastructure areas where microwave emissions are prohibited.
- Requiring electromagnetic-risk assessments before deployment. [sde-uk.com]sde-uk.comThe Impact of the Electromagnetic Environment on…23 Apr 2025 — This includes risk assessments, system performance validation, safe sep…
- Integrating microwave systems into broader electromagnetic-spectrum management plans. [NATO+3waru.edu+3sde-uk.com]waru.eduMIL STD 464DMIL-STD-464D1 Dec 2010 — This standard is approved for use by all Departments 3.13 High power microwave (HPM). electronics demand that ef…
The growth of counter-drone microwave technology has increased the importance of these measures. Modern systems are promoted as effective against large drone swarms because they can affect many targets at once, but that same area effect makes careful boundary management essential. Exclusion zones therefore become the practical mechanism that allows operators to exploit microwave defences while limiting exposure to friendly and civilian electronics. [Epirus+2The Strategist]epirusinc.comTap to unmute.Read moreEpirusEpirus' Leonidas High-Power Microwave Defeats 49-Drone …10 Sept 2025 — Leonidas neutralized 61-of-61 drones, culminating in a 49-…
