Can Lasers Beat Turbulent Air?

Introduction

A high-energy laser can be perfectly aimed and still miss its intended effect if the atmosphere reshapes the beam on the way to the target. Pockets of warm and cool air, turbulence, dust, haze and the laser’s own heating of the air can distort the wavefront of the beam, causing the focused spot to spread out and reducing the energy delivered to the aim point. Adaptive optics (AO) is the principal technology developed to counter this problem. By measuring distortions in real time and reshaping optical elements inside the laser system, adaptive optics can restore a tighter focus and increase irradiance on the target. However, it is not a magic solution. It can compensate for many forms of atmospheric distortion, but weather, distance and fundamental propagation physics still impose limits on laser weapon performance.[AIAA Arc+2ResearchGate]arc.aiaa.orgAIAA ArcAdaptive Optics for Directed Energy: Fundamentals and…by RB Holmes · 2022 · Cited by 28 — Adaptive optics are beneficial for d…

How the Atmosphere Distorts a Laser Beam

The atmosphere is not a uniform optical medium. Temperature, pressure and humidity vary constantly along a beam path. These variations change the refractive index of air, bending different portions of a laser wavefront by slightly different amounts. The result is comparable to viewing an object through shimmering hot air above a road: the image blurs and moves because light is being distorted during propagation.[AIAA Arc+2skoge.folk.ntnu.no]arc.aiaa.orgAIAA ArcAdaptive Optics for Directed Energy: Fundamentals and…by RB Holmes · 2022 · Cited by 28 — Adaptive optics are beneficial for d…

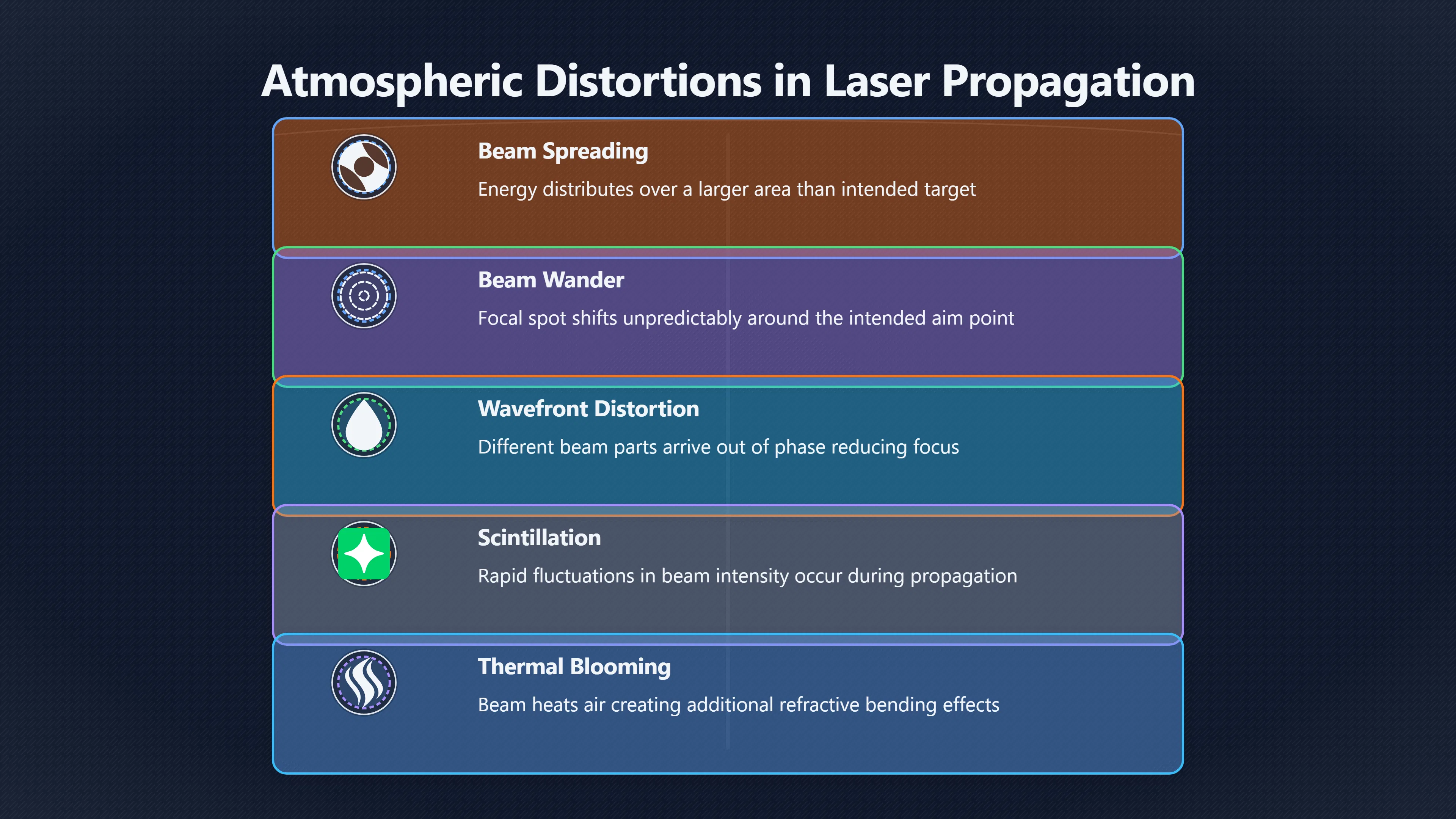

For a directed-energy system, these distortions matter because damage depends on concentrating power into the smallest possible spot. Turbulence can produce several harmful effects:

• Beam spreading: energy is distributed over a larger area than intended.
• Beam wander: the focal spot shifts unpredictably around the target.
• Wavefront distortion: different parts of the beam arrive out of phase, reducing focus quality.
• Scintillation: rapid fluctuations in beam intensity.
• Thermal blooming: the beam heats the air, creating additional refractive distortions that can bend or defocus the laser.[publications.sto.nato.int+2rp-photonics.com]publications.sto.nato.int6.0 PROPAGATION AND ADAPTIVE OPTICSThe primary initial effects of thermal blooming are to bend the laser beam toward the cooler, denser air…

These effects become more severe as range increases because the beam passes through more disturbed air. A laser that appears tightly focused near its source may arrive at long range as a much larger, less damaging spot. Studies of high-energy laser propagation consistently identify turbulence, scattering, absorption and thermal effects as major factors limiting energy delivery to the target.[MDPI+2Naval Postgraduate School]mdpi.comLaser Beam Atmospheric Propagation Modelling for…by T Fahey · 2021 · Cited by 108 — The underlying causes of laser beam attenuatio…

What Adaptive Optics Correct During Propagation

Adaptive optics attempts to reverse atmospheric damage before it reaches the target. The core idea is straightforward: if the atmosphere will distort the beam in a known way, the optical system can deliberately pre-distort the outgoing beam in the opposite way so that the distortions cancel during flight.[spie.org+2ResearchGate]spie.orgOpen source on spie.org.

A typical adaptive-optics system contains three key elements:

1. Wavefront sensing – measures how the atmosphere has distorted light travelling along the engagement path.
2. Control computer – calculates the required correction.

1. Deformable mirror – changes shape many times per second to impose the corrective pattern onto the outgoing beam. Photonics+2skoge.folk.ntnu.no

The deformable mirror is the defining feature. Rather than being rigid, it contains many controllable actuators that slightly warp the mirror surface. Even microscopic changes can significantly alter the optical wavefront. The system continuously measures atmospheric distortion and updates the mirror shape in real time. skoge.folk.ntnu.no+2mza.com

The goal is not merely to keep the beam pointed at the target. Tracking and pointing systems handle aim. Adaptive optics improves the quality of the beam itself, ensuring that more of the laser power arrives inside the desired spot once it reaches the target. This distinction is crucial in directed-energy engagements because improved beam quality directly translates into higher irradiance and shorter dwell times for achieving a given effect. Google Patents+2ResearchGate

How the System Learns What to Correct

One of the hardest challenges is determining exactly how the atmosphere is distorting the beam path.

Many adaptive-optics concepts rely on a beacon—a separate light source reflected from or near the target. The returning light carries information about atmospheric distortion. By analysing that return signal, the system estimates how the outgoing high-energy beam should be modified. scienceandglobalsecurity.org+2mza.com

Programmes associated with airborne laser development explored active illumination methods in which separate tracking and adaptive-optics illuminators generated information used for atmospheric compensation and target tracking. These experiments demonstrated that atmospheric correction and precision tracking are closely linked in practical laser engagements. archive.ll.mit.edu

A persistent difficulty is that ideal beacon conditions are not always available. Targets may not provide a suitable return signal, and atmospheric conditions can change faster than measurements can be processed. This challenge has driven interest in “beaconless” adaptive-optics approaches that infer distortions directly from target imagery or other feedback mechanisms. Navy SBIR

Why Adaptive Optics Matters for Energy on Target

The value of adaptive optics is best understood in terms of energy concentration rather than beam appearance.

A laser weapon’s effectiveness depends on how much power reaches a small area of the target. If atmospheric turbulence doubles the diameter of the focal spot, the energy density can fall dramatically. Restoring a tighter focus increases the fraction of total power delivered to the intended location. ResearchGate+2mza.com

Researchers studying directed-energy systems describe adaptive optics as beneficial whenever higher-order atmospheric aberrations become significant. Wavefront correction can compensate not only for turbulence but also for distortions originating in the laser system itself, transmitter boundary layers and thermal effects along the beam path. AIAA Arc

The practical consequence is that a corrected beam can achieve the same heating effect in less time than an uncorrected beam, or achieve greater effects at the same power level. Some atmospheric-compensation concepts were developed specifically to reduce the time a laser must remain on a target to achieve a desired outcome. Google Patents

Where Weather and Distance Still Limit Performance

Adaptive optics is often presented as a solution to atmospheric turbulence, but it does not eliminate all atmospheric losses.

Some limitations are fundamental. Rain, fog, clouds, dust and dense aerosols do not merely distort light; they absorb or scatter it. Adaptive optics can reshape a wavefront, but it cannot recover energy that never reaches the target because it was scattered away or absorbed along the path. MDPI

Thermal blooming presents another challenge. As a powerful laser deposits energy into the air, the heated air itself becomes part of the problem. Adaptive optics can mitigate some blooming effects, but strong blooming can evolve dynamically and reduce correction effectiveness. NATO educational materials on laser propagation identify thermal blooming as a major source of beam bending and distortion in high-energy systems. publications.sto.nato.int+2rp-photonics.com

Distance also matters. As propagation paths grow longer, the atmosphere becomes more variable and harder to characterise accurately. Corrections that are effective over one segment of the path may not perfectly compensate for conditions farther downrange. Researchers note that adaptive optics can compensate for turbulence but cannot overcome diffraction limits, poor intrinsic beam quality or every propagation effect encountered over long distances. Optica Publishing Group

There is also a practical speed problem. Turbulence changes continuously. Adaptive-optics systems must measure distortions, compute corrections and reshape mirrors fast enough to keep up. If atmospheric fluctuations occur faster than the correction cycle, residual errors remain. This is why modern systems emphasise high-speed sensing and control loops operating hundreds or thousands of times per second. skoge.folk.ntnu.no

Can Lasers Beat Turbulent Air?

Adaptive optics does not remove the atmosphere from the engagement equation, but it substantially reduces one of the most important obstacles to laser effectiveness. By measuring wavefront distortions and reshaping the outgoing beam with deformable mirrors, adaptive-optics systems can recover much of the focus quality lost to turbulence and other optical aberrations. The result is a smaller spot, higher irradiance and more energy delivered to the aim point. AIAA Arc+2ResearchGate

The critical caveat is that adaptive optics addresses distortion, not every source of loss. Heavy weather, strong scattering, absorption, thermal blooming and extreme ranges continue to degrade performance. For directed-energy weapons, adaptive optics is therefore best understood not as a cure for atmospheric propagation problems but as a sophisticated compensation tool that allows laser systems to operate much closer to their theoretical potential under real-world conditions. MDPI+2publications.sto.nato.int
