Why the Ocean Helps Ship Lasers Fire Again
A ship's access to the sea gives engineers a far larger heat sink than an aircraft can carry, even though cooling remains difficult.
On this page
- Why laser waste heat builds up quickly
- How ships move heat through pumps and exchangers
- Why aircraft cannot copy ship scale cooling
Page outline Jump by section
Introduction
One reason warships are more practical hosts for high-energy laser weapons than aircraft is that they operate beside an enormous natural heat sink: the ocean. Laser weapons convert only part of their input energy into a beam. The remainder becomes waste heat that must be removed before laser optics, power electronics and supporting equipment overheat. As laser power rises, thermal management often becomes as important as power generation itself. Naval platforms still face difficult cooling challenges, but they can continuously transfer large quantities of heat into seawater through pumps, heat exchangers and ship-wide cooling networks. Aircraft, by contrast, must carry their cooling systems with them and have far less space and mass available for heat rejection. This difference directly affects how often a laser can fire and how long it can operate at high power. [Zenodo+2IMarEST]zenodo.orgAdvanced Cooling Methods for Naval Laser Directed…Feb 3, 2021 — The aim was to characterise the thermal demands of near-term and…
Why Laser Waste Heat Builds Up Quickly
High-energy lasers are not perfectly efficient. Even advanced solid-state and fibre-laser architectures generate substantial waste heat in gain media, pump diodes, power-conditioning equipment and beam-control electronics. Continuous operation requires that this heat be removed in real time; otherwise temperatures rise, optical components distort and performance degrades. [Google Patents+2ResearchGate]patents.google.comGoogle PatentsLaser Thermal Management Systems And MethodsFor continuous operation, waste heat must be removed in real time by cooling se…
The problem becomes more severe as laser power increases. A weapon intended to engage multiple targets in succession may need to reject hundreds of kilowatts of thermal energy, and some directed-energy studies have examined systems requiring cooling capacity measured in megawatts. Thermal management therefore becomes a limiting factor on sustained firing rather than merely a supporting subsystem. [SAE Mobilus+2University of Texas Libraries]saemobilus.sae.orgSAE Mobilus2010-01-1781: Thermal Management and Power Generation…by VP Patel · 2010 · Cited by 7 — Both systems generate substantial h…
For laser weapons, overheating is not simply a reliability concern. Excess heat can alter optical alignment, change laser wavelength characteristics, reduce beam quality and shorten component life. Maintaining stable temperatures is essential if the weapon is to deliver repeatable performance over multiple engagements. [Eaton+2PAMS Public]eaton.comLaser liquid cooling optimizationLaser liquid cooling helps accomplish three goals: maintaining a precise laser wavelength and highe…
How Ships Move Heat Through Pumps and Exchangers
A warship’s advantage is not that seawater magically cools the laser directly. Instead, naval engineers build layered cooling systems that transport heat away from sensitive components and ultimately reject it into the surrounding sea.

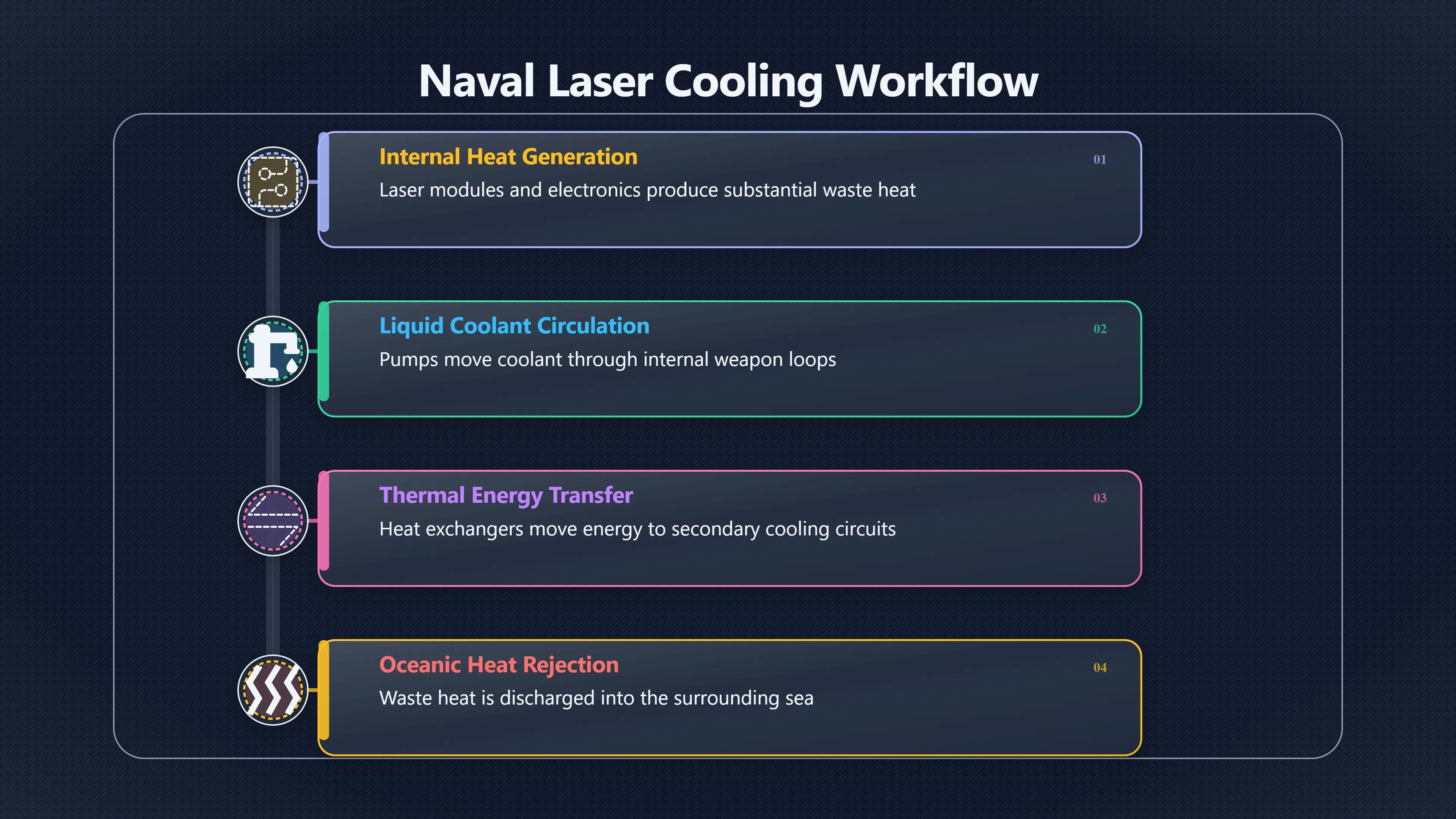

A typical arrangement uses liquid cooling loops inside the weapon. Pumps circulate coolant through laser modules, electronics and power equipment. The heated coolant then passes through heat exchangers, where its thermal energy is transferred to another cooling circuit and eventually to seawater. The ocean effectively becomes the final destination for waste heat. [Google Patents+2Zenodo]patents.google.comGoogle PatentsThermal management system for directed energy weapon…A fluid pump may then pump heat transfer fluid by routing it throug…
This architecture offers several advantages:
- Large thermal capacity: The surrounding sea can absorb far more heat than any onboard reservoir.
- Continuous heat rejection: As long as pumps and exchangers operate, heat can be carried away instead of accumulating inside the ship.
- Scalability: Larger pumps, chillers, thermal storage systems and heat exchangers can be installed in dedicated machinery spaces.
- Integration with existing systems: Warships already employ extensive seawater-cooling networks for propulsion, electrical equipment and sensors, providing infrastructure that laser systems can leverage. [IMarEST+2NOAA Institutional Repository]library.imarest.orgINEC 2020 Paper 100Advanced Cooling Methods for Naval Laser Directed…by A Hook · 2020 · Cited by 2 — An in-depth review of the capabilities of TES…
Research into naval laser integration has repeatedly highlighted cooling as a central design challenge, leading to studies of thermal-energy storage, advanced chillers and other methods that help absorb short bursts of heat before it is discharged into seawater. The key point is that the ship has somewhere meaningful to send that heat once it is collected. [Zenodo+2IMarEST]zenodo.orgAdvanced Cooling Methods for Naval Laser Directed…Feb 3, 2021 — The aim was to characterise the thermal demands of near-term and…
Why the Ocean Changes Firing Endurance
The operational value of seawater cooling is not merely lower temperatures. It is the ability to recover between shots.
If a laser deposits more heat into the platform than the cooling system can remove, firing must slow or stop while temperatures fall. A ship connected to an effectively unlimited external heat sink can restore thermal margins more rapidly than a platform that must retain most of its waste heat internally. This improves the prospect of repeated engagements against drones, missiles or other threats arriving in sequence. [Zenodo+2Aminext 科技筆記]zenodo.orgAdvanced Cooling Methods for Naval Laser Directed…Feb 3, 2021 — The aim was to characterise the thermal demands of near-term and…
This does not mean naval lasers can fire indefinitely. Cooling equipment, pump capacity, heat-exchanger performance and electrical generation still impose limits. Studies of maritime directed-energy weapons emphasise that future higher-power systems may require increasingly sophisticated cooling architectures. Nevertheless, access to seawater fundamentally shifts the problem from storing heat to continuously exporting it. [Zenodo+2ResearchGate]zenodo.orgAdvanced Cooling Methods for Naval Laser Directed…Feb 3, 2021 — The aim was to characterise the thermal demands of near-term and…
Why Aircraft Cannot Copy Ship-Scale Cooling
Aircraft face the same thermal physics but under far harsher size, weight and power constraints.
An aircraft cannot carry a sea-sized heat sink. Any cooling fluid, thermal storage medium, radiator or refrigeration equipment must compete with fuel, weapons and payload capacity. As heat loads rise, the mass and volume devoted to thermal management can become prohibitive. Research into airborne directed-energy systems has therefore devoted significant attention to compact thermal-storage approaches because heat rejection is so difficult on a weight-constrained platform. [ResearchGate+2Mobility Engineering Technology]researchgate.netResearch Gate Design of a Thermal Management System for DirectedDesign of a Thermal Management System for Directed…June 22, 2009 — A generic model was developed that can provide an estim…
Even advanced airborne cooling systems often rely on temporarily storing heat or rejecting it through relatively limited surfaces and airflow. Ships, in contrast, can devote entire machinery spaces to pumps, chillers, piping and heat exchangers while continuously drawing cooling capacity from the surrounding ocean. [ResearchGate+2IMarEST]researchgate.netResearch Gate Design of a Thermal Management System for DirectedDesign of a Thermal Management System for Directed…June 22, 2009 — A generic model was developed that can provide an estim…
The result is not that aircraft can never carry lasers. Rather, every increase in laser power forces aircraft designers into difficult trade-offs among range, payload, endurance and cooling equipment. Naval vessels face engineering challenges as well, but their access to seawater gives them a thermal-management margin that aircraft fundamentally lack. [Zenodo+2University of Texas Libraries]zenodo.orgAdvanced Cooling Methods for Naval Laser Directed…Feb 3, 2021 — The aim was to characterise the thermal demands of near-term and…
The Real Advantage: An External Heat Sink
The most important cooling advantage enjoyed by ships is simple: waste heat does not have to stay onboard. High-energy lasers inevitably generate large thermal loads, and successful operation depends on removing that heat quickly enough to preserve optics, electronics and beam quality. Through pumps, liquid-cooling loops and seawater heat exchangers, a ship can continuously transfer thermal energy into the ocean, turning the surrounding environment into part of the weapon’s support system. Aircraft must manage essentially the same thermal burden with far less space, mass and cooling capacity available. That difference makes seawater cooling one of the clearest reasons why warships have become the leading operational hosts for high-energy laser weapons.
