What Happens Inside an Exposed Drone?

Introduction

Friendly drones operating inside a high-power microwave (HPM) engagement area can experience effects ranging from a momentary communications glitch to complete electronic failure. The reason is straightforward: microwave weapons are designed to inject disruptive electromagnetic energy into electronic systems. A friendly drone does not need to be the intended target to be exposed. If sufficient energy reaches its antennas, wiring, circuit boards, sensors, or processors, the drone may lose navigation, communications, flight-control stability, or power-management functions. Wider-beam microwave systems are particularly challenging because they can affect multiple electronic systems within the illuminated area rather than a single precisely selected target. [GAO]gao.govgao 23 106717Science & Tech Spotlight: Directed Energy Weapons25 May 2023 — For example, wider beam DEWs, such as high power microwave or millimete…Published: May 2023

Understanding what happens inside an exposed drone requires examining how microwave energy enters the aircraft, how that energy interacts with onboard electronics, and why apparently similar drones can respond very differently to the same pulse.

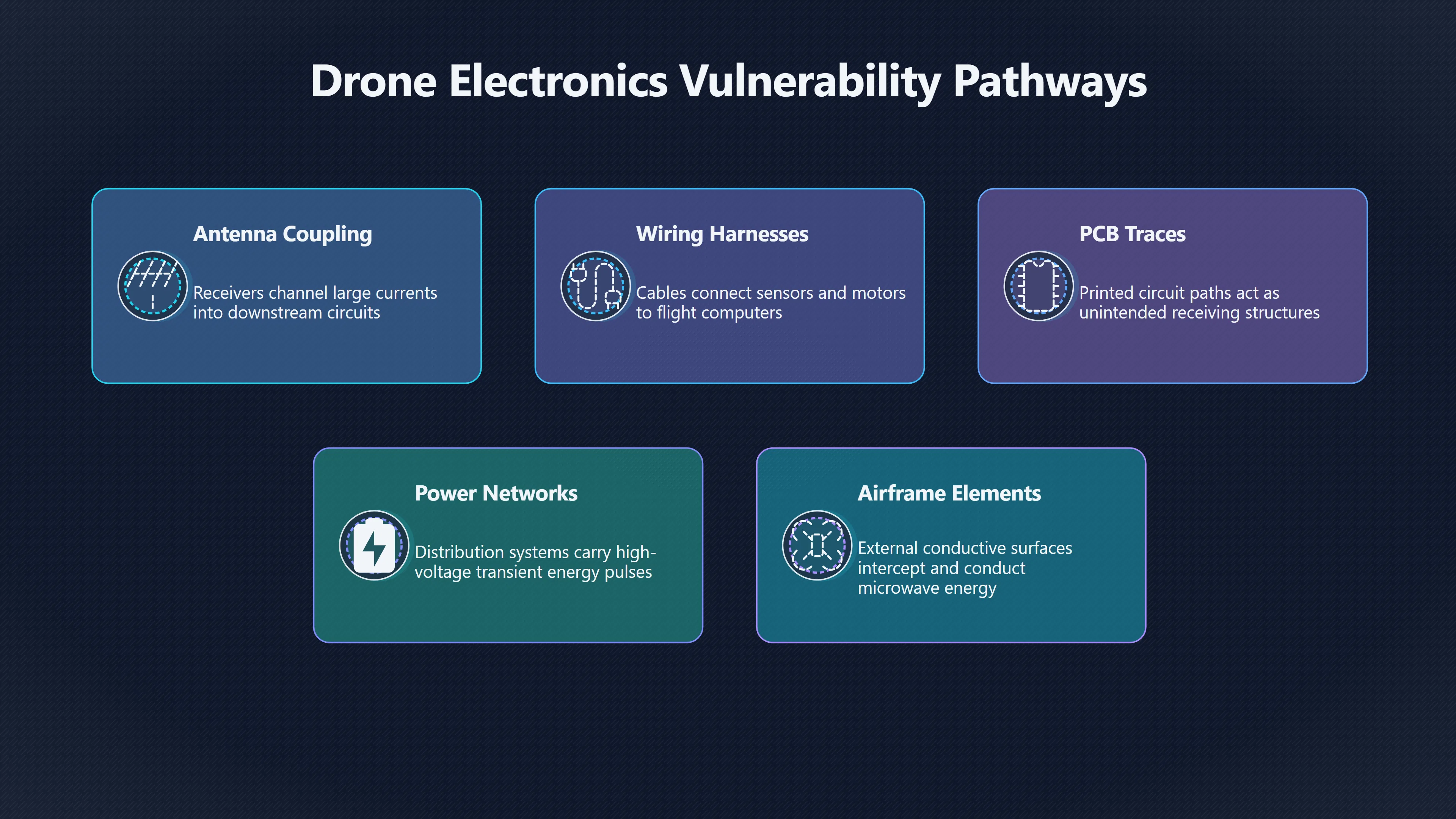

How Microwave Energy Reaches Drone Electronics

Microwave weapons do not need to physically strike a component in the way a projectile does. Instead, they radiate intense electromagnetic fields that can couple into conductive structures on the drone.

Antennas are often the most obvious entry path. A command-and-control antenna, video transmitter antenna, GPS antenna, or telemetry link is deliberately designed to receive radio-frequency energy. Under normal conditions, that energy carries useful signals. Under HPM exposure, the same structures can channel unusually large electromagnetic currents into receivers and downstream electronics. [Everything RF]everythingrf.comWhen exposed to high-field-strength…Read more…

Energy can also enter through less obvious routes:

Once coupled into the drone, the microwave pulse is converted into unwanted voltages and currents. These electrical disturbances propagate through systems that were designed for millivolt- or volt-level signals, not the much larger transient energy associated with HPM exposure. [Everything RF]everythingrf.comWhen exposed to high-field-strength…Read more…

What Happens Inside an Exposed Drone?

The most important point is that failure often begins as an electronic upset before progressing to permanent damage.

A modern drone depends on a tightly connected network of processors, sensors, navigation receivers, radio links, motor controllers, and power electronics. A microwave pulse can temporarily overwhelm these systems even when no physical component is destroyed. Researchers studying UAV electromagnetic immunity note that microwave exposure can disturb communications, influence flight controllers, affect navigation receivers, and induce parasitic currents throughout the aircraft’s electronic subsystems. [MDPI]mdpi.comInvestigation on Electromagnetic Immunity of Unmanned…by R Kubacki · 2025 · Cited by 2 — Microwave field incidents on a drone can…

Several mechanisms are commonly observed:

Logic upset. A processor or digital circuit receives unintended electrical signals that cause incorrect decisions, corrupted data, or software crashes. The hardware may survive, but the drone behaves unpredictably. [Academia]academia.eduAcademia(DOC) High Power Microwave Weapons-Back in Focus5 Mar 2026 — Four primary electronic effects of HPM weapons include upset, lockup…

Receiver overload. GPS, command-link, and telemetry receivers can become saturated by intense electromagnetic energy, causing loss of positioning or communications. Experimental studies have reported GPS interference and datalink interruption under HPM exposure. [Taylor & Francis Online]tandfonline.comTaylor & Francis OnlineInvestigation on the effects of C-band high-power…by Z Zhang · 2025 · Cited by 5 — The results reveal that HPM…

Control-signal corruption. Motor-control commands may become distorted. A recent study examining electromagnetic pulse effects on UAVs identified flight-control paralysis caused by corruption of pulse-width modulation (PWM) control signals as a key soft-kill mechanism. In this case the aircraft may lose effective control even though major hardware remains intact. [MDPI]mdpi.com2504 446XAnalysis of High-Power Electromagnetic Pulses Effect on…by KJ Lee · 2026 — This study investigates the “soft-kill” mechanism of un…

Latch-up and abnormal current paths. Semiconductor devices can enter unintended operating states that dramatically increase current flow. These conditions may persist until power is removed and can progress to physical damage if energy levels are high enough. [Everything RF+2Academia]everythingrf.comWhen exposed to high-field-strength…Read more…

Component burnout. At higher exposure levels, induced currents and electric fields can exceed semiconductor limits, causing irreversible failure in transistors, integrated circuits, and power-management components. Experimental and simulation research has demonstrated microwave-induced burn-out mechanisms in advanced semiconductor devices. [ResearchGate]researchgate.netIOP Publishing.Read more…

Why Exposure Effects Vary Between Similar Drones

Two drones that appear nearly identical externally may respond very differently to the same microwave pulse.

One reason is electronic architecture. Different flight controllers, radio modules, GPS receivers, and power-management systems have different susceptibility thresholds. Small design variations can change how efficiently microwave energy couples into sensitive circuits. [Preprints]preprints.orgInvestigation on Electromagnetic Compatibility of…26 Sept 2025 — As drone electronics continue to integrate and develop, they…

Shielding quality is another factor. Metal enclosures, filtered connectors, grounding arrangements, and electromagnetic compatibility measures can significantly influence survivability. Even small gaps in shielding may become pathways for energy penetration. Defence and electromagnetic-effects literature repeatedly identifies shielding and hardening quality as major determinants of vulnerability. [Mobility Engineering Technology]mobilityengineeringtech.comMobility Engineering TechnologyHardening Unmanned Aerial Systems Against High-Power…May 1, 2022 — High power microwave weapons use int…Published: May 1, 2022

Geometry also matters. The drone’s orientation relative to the microwave source changes how much energy is intercepted by antennas, wiring, and conductive structures. Frequency, pulse shape, field strength, polarisation, and exposure duration all influence the final outcome. [Preprints+2MDPI]preprints.orgInvestigation on Electromagnetic Compatibility of…26 Sept 2025 — As drone electronics continue to integrate and develop, they…

As a result, one friendly drone may recover after a brief disruption while another nearby aircraft suffers a mission-ending failure.

Temporary Disruption Versus Mission Kill and Hardware Damage

Not every exposed drone is permanently damaged. Effects generally fall along a spectrum.

Temporary Disruption

At lower effective exposure levels, a drone may experience:

Operators might observe the aircraft hovering unexpectedly, entering a failsafe mode, returning home automatically, or temporarily losing responsiveness.

Mission Kill

A mission kill occurs when the drone can no longer perform its operational task even if major hardware survives.

Examples include:

From an operational perspective, this outcome can be almost as significant as physical destruction because the aircraft is removed from the mission.

Permanent Hardware Damage

At the highest exposure levels, microwave energy can physically damage semiconductors and power electronics.

Induced voltages and currents may exceed device tolerances, creating overheating, dielectric breakdown, melted junctions, or irreversible transistor failure. Defence and electronics research commonly categorises these outcomes as burnout or destructive damage rather than temporary upset. [ResearchGate+3Everything RF+3ResearchGate]everythingrf.comWhen exposed to high-field-strength…Read more…

A friendly drone suffering this level of exposure may require component replacement or complete loss write-off.

Why Friendly Drones Remain at Risk

The challenge for forces using microwave counter-drone systems is that the physical mechanism does not inherently distinguish between friendly and hostile electronics. Microwave energy interacts with conductive structures and electronic circuits according to electromagnetic physics, not ownership. Government assessments of directed-energy systems have therefore highlighted that wider-beam microwave weapons can affect all assets within the illuminated area, whether friend or foe. [GAO]gao.govgao 23 106717Science & Tech Spotlight: Directed Energy Weapons25 May 2023 — For example, wider beam DEWs, such as high power microwave or millimete…Published: May 2023

For friendly drones operating inside that area, the practical consequences depend on how much energy couples into their electronics, which systems are affected first, and whether the resulting effect remains a recoverable disruption or escalates into permanent hardware damage.
