Within Dazzle Damage
Why Blinding a Drone Camera Is Easier
Drone cameras can lose useful imagery at light levels far below those needed to cause permanent sensor damage.
On this page
- What sensor saturation looks like
- Why damage needs far more energy
- When temporary blindness stops the mission
Page outline Jump by section
Introduction
Drone cameras are usually much easier to blind than to destroy because image sensors stop producing useful pictures long before they suffer permanent physical damage. A directed-energy system does not need to melt electronics, crack optics, or burn through the drone itself to achieve a military effect. If enough light reaches the camera sensor, the detector becomes saturated, causing glare, blooming, washed-out images, or complete loss of scene information. At that point the drone may be unable to navigate, identify targets, track objects, or guide a weapon, even though its hardware remains intact. Research on imaging sensors consistently finds that the energy required for saturation is vastly lower than the energy required for permanent damage, making sensor dazzling an attractive option when the goal is mission interruption rather than destruction. [arXiv]arxiv.orgLearning to See Through Dazzle4 Mar 2024 — The damage thresholds of silicon-based imaging sensors are typically six to nine orders o…
What Sensor Saturation Looks Like
Digital cameras and infrared imagers work by converting incoming light into electrical signals. Each pixel can only store a limited amount of information. When too much light arrives, the pixel reaches its maximum capacity and can no longer distinguish meaningful image detail.
In practical terms, saturation appears as:
- Bright white patches that obscure the scene.
- Blooming, where overexposed areas spread into neighbouring pixels.
- Lens flare and glare that reduce contrast.
- Large dazzle spots that hide targets or navigation references.
- Automated vision systems losing the ability to recognise objects.
For a drone operator, the important point is that useful imagery can disappear even when the camera remains fully functional. Once the dazzling source is removed, the image often returns to normal because the sensor itself has not been physically harmed. Studies of laser-dazzled imaging systems focus heavily on information loss rather than hardware failure because operational blindness typically occurs first. [ResearchGate]researchgate.netLaser dazzling analysis of camera sensors | Request PDFWe present an optical concept for imaging sensor systems, designed to…
This vulnerability is especially important for modern drones. Many commercial and military systems rely on electro-optical cameras, infrared sensors, collision-avoidance cameras, and machine-vision algorithms. If these sensors lose visual information, the aircraft may no longer be able to complete its mission even though its motors, batteries, and flight computer continue operating. [Royal Military Academy]researchportal.rma.ac.beOpen source on rma.ac.be.
Why Damage Needs Far More Energy

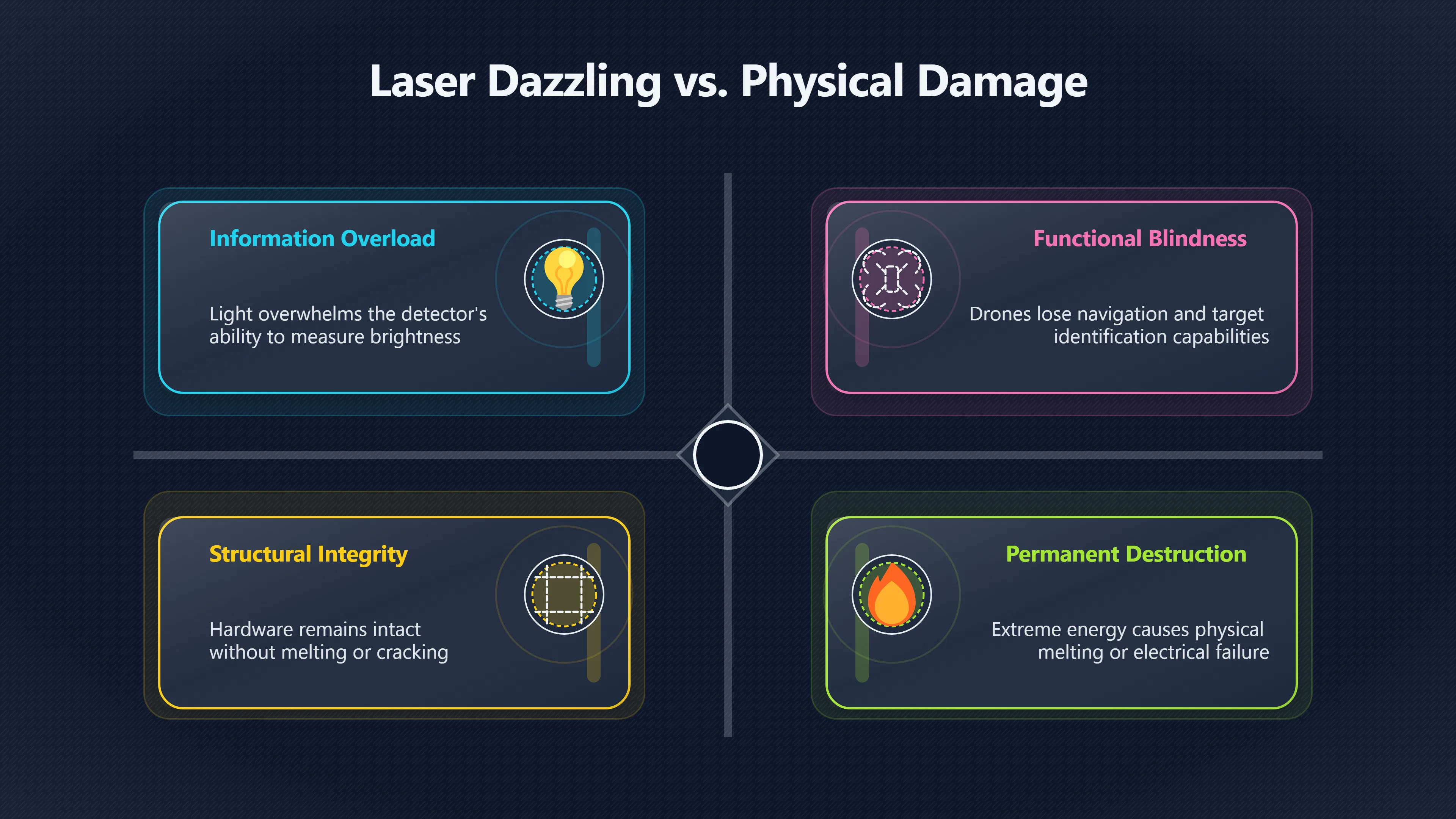

The difference between dazzling and destruction comes from physics.
To dazzle a sensor, a directed-energy system only needs to deliver enough light to overwhelm the detector’s ability to measure brightness accurately. This is essentially an information problem: the camera receives so much light that it can no longer distinguish the scene from the illumination source.
Permanent damage is different. The laser must deposit sufficient energy into the sensor, optical coating, or detector material to create physical changes such as overheating, melting, cracking, delamination, or electrical failure. Those processes require substantially more energy and often more precise beam control. [SPIE Digital Library]spiedigitallibrary.org1.OE.56.3.034108.fullSPIE Digital LibraryLaser-induced damage threshold of camera sensors and …by B Schwarz · 2017 · Cited by 71 — The laser-induced damage…
A frequently cited finding in the laser-effects literature is that silicon imaging sensors typically have damage thresholds six to nine orders of magnitude higher than their saturation thresholds. In other words, a camera can be rendered effectively blind at energy levels millions or even billions of times lower than those needed for permanent destruction. [arXiv]arxiv.orgLearning to See Through Dazzle4 Mar 2024 — The damage thresholds of silicon-based imaging sensors are typically six to nine orders o…
Researchers studying laser effects on electro-optical sensors similarly note that the power density required for dazzling is several orders of magnitude lower than that required for damage. This is one reason why counter-drone systems often treat sensor interference and hardware destruction as distinct engagement modes. [MDPI]mdpi.comFresnel Diffraction Model for Laser Dazzling Spots of…by X Wang · 2024 · Cited by 1 — However, the power density required for dazz…
Why Camera Design Increases Vulnerability
Ironically, the very features that make cameras useful also make them easy to dazzle.
Camera lenses are designed to gather as much light as possible and focus it onto a tiny detector. A laser entering the lens benefits from this concentrating effect. Even modest incoming optical power can be focused onto a very small region of the sensor, creating intense local brightness.
However, reaching the damage threshold still requires overcoming several barriers: [meetoptics.com]meetoptics.comDamage ThresholdPulsed LaserThe pulsed damage threshold indicates the maximum energy density that an optic can withstand without being damaged when expos…
- Protective optical coatings may reflect part of the energy.
- Automatic exposure controls can shorten exposure times.
- Filters may block certain wavelengths.
- Atmospheric turbulence can spread the beam.
- Precise tracking is needed to keep the beam on the small camera aperture.
These factors do not eliminate the risk of damage, but they raise the energy and accuracy requirements compared with simple dazzling. [ResearchGate+2PMC]researchgate.net335506224 Laser Safety Calculations for Imaging SensorsResearchGate(PDF) Laser Safety Calculations for Imaging Sensors28 Aug 2019 — This publication presents an approach to adapt the well-know…
When Temporary Blindness Stops the Mission
From an operational perspective, permanent destruction is often unnecessary.
A surveillance drone that cannot see its target may fail to gather intelligence. A first-person-view attack drone that loses visual guidance may miss entirely. An autonomous system that depends on optical navigation can become unreliable if landmarks, obstacles, or targets disappear behind a dazzle spot. Research examining laser effects on drone cameras and collision-avoidance systems highlights how temporary sensor interference can disrupt surveillance, obstacle avoidance, and attack-related tasks. [Royal Military Academy]researchportal.rma.ac.beOpen source on rma.ac.be.
This explains the distinction often made between “soft kill” and “hard kill” counter-drone methods. Soft-kill approaches seek to deny the drone the information it needs, while hard-kill approaches physically destroy components. In laser-based counter-drone concepts, dazzling often serves as the soft-kill mechanism because it can achieve mission failure without requiring the far greater energy needed for structural destruction. [MDPI]mdpi.comStudy on the Performance of Laser Device for Attacking…by J Wu · 2024 · Cited by 5 — In order to test the performance of laser dev…
A useful analogy is the difference between covering a driver’s windscreen with bright headlights and destroying the vehicle’s engine. Both may stop the journey, but one requires far less energy and causes far less physical damage.
Why Militaries Often Value Dazzling
The large gap between saturation and damage thresholds creates practical advantages.
A system designed primarily for dazzling can potentially:
- Operate at lower power levels.
- Affect targets at longer ranges for a given power budget.
- Require shorter illumination times.
- Reduce the risk of unintended physical destruction.
- Interrupt missions without creating debris.
These characteristics help explain why sensor dazzling remains an important part of the broader directed-energy toolkit. The goal is not always to destroy the drone. Often it is enough to deny the drone the visual information that makes it useful in the first place. Because cameras fail functionally long before they fail physically, blinding a drone camera is usually the easier task. [MDPI+2arXiv]mdpi.comFresnel Diffraction Model for Laser Dazzling Spots of…by X Wang · 2024 · Cited by 1 — However, the power density required for dazz…
