The Fast Mirrors Behind Laser Aim

Introduction

In a directed-energy weapon, keeping the laser on a precise aim point is often harder than generating the laser power itself. Large tracking systems can follow a target across the sky, but they cannot react fast enough to every vibration, structural flex, atmospheric disturbance or tiny tracking error. That final layer of correction is typically handled by a fine steering mirror, also known as a fast steering mirror (FSM). These lightweight mirrors make rapid angular adjustments that redirect the beam by tiny amounts, allowing the laser spot to remain locked onto the desired location despite continual disturbances. In practical beam-control architectures, they are one of the key technologies that turn a theoretically powerful laser into a weapon capable of maintaining damaging energy density on a real target. [Google Patents+2Aero-Optics Group]patents.google.comGoogle PatentsWO2016024265A1 - Directed energy weaponfine alignment correction of the HEL beam (1) is achieved by adjusting an angle of f…

What Coarse Tracking Cannot Correct

Directed-energy systems usually employ multiple layers of pointing control. A larger tracking assembly—such as a gimbal, turret or beam director—handles broad target motion and keeps the beam generally aligned with the target. However, these larger mechanisms have physical limits. Their mass restricts how quickly they can accelerate and reverse direction, making them unsuitable for correcting rapid disturbances. [The Engineer]theengineer.markallengroup.comThe EngineerDevelopment of magnetic fast steering mirror prototype for…July 6, 2018 — Cited by 3 — Fast Steering Mirrors (FSM) are req…Published: July 6, 2018

Many of the most damaging pointing errors occur at much higher frequencies than a large tracking mount can address. Examples include:

• Vibration from engines, generators or cooling equipment.
• Structural oscillations in ships, vehicles and aircraft.
• Small tracking errors produced by sensor noise.
• Atmospheric tip-tilt effects that cause apparent target motion.
• Mechanical disturbances transmitted through the optical train. [Aero-Optics Group+2CORE]aero-optics.nd.eduAero-Optics GroupAdaptive Optics and Beam Correction Systems | ResearchThe fast steering mirror allows us to cancel out tip/tilt and move…

Even when these motions are extremely small in angular terms, they can create significant spot displacement at long range. A beam that wanders by a fraction of a milliradian can miss a critical aim point by many centimetres or more after travelling several kilometres. Since laser effectiveness depends on concentrating energy onto the same location, these tiny errors can dramatically reduce irradiance and increase the time required to achieve damage. [Optica Publishing Group]opg.optica.orgOptica Publishing GroupHigh-precision and large-range deflection of light beams…18 Sept 2024 — Fast steering mirrors (FSMs) can deflec…

This is where fine steering mirrors become essential. Rather than moving the entire beam director, the system moves only a lightweight mirror, allowing much faster corrections with far less inertia. [The Engineer]theengineer.markallengroup.comThe EngineerDevelopment of magnetic fast steering mirror prototype for…July 6, 2018 — Cited by 3 — Fast Steering Mirrors (FSM) are req…Published: July 6, 2018

How Fine Steering Mirrors Reduce Vibration Errors

A fine steering mirror is typically a small reflective surface mounted on precision actuators that can tilt the mirror around two axes. By changing the mirror angle by minute amounts, the outgoing beam direction can be altered almost instantly. Because the mirror is lightweight and moves through very small angles, it can respond far faster than larger mechanical pointing systems. [Physik Instrumente]physikinstrumente.co.ukPhysik Instrumente Fast Steering Mirror | Piezo Tip/Tilt | FSM | Manufacturer | PIPI's ultra fast steering mirror platforms and dither scPhysik InstrumenteFast Steering Mirror | Piezo Tip/Tilt | FSM | Manufacturer | PIPI's ultra fast steering mirror platforms and dither sca…

In many systems, the mirror operates inside a closed-loop control architecture. Sensors detect where the beam or target image is located relative to the desired aim point. The controller calculates the pointing error and commands the mirror to compensate. This cycle repeats continuously, often hundreds or thousands of times per second. [DSpace+2IJMER]dspace.mit.eduControl of a Fast Steering Mirror for Laser-Based Satellite…by LE Hawe · 2006 · Cited by 28 — On power up, the FSM's angular pos…

The practical effect is that the mirror cancels out high-frequency disturbances before they can spread the laser energy over a wider area. Research and operational beam-control systems frequently use fast steering mirrors specifically to suppress beam jitter, stabilise line-of-sight pointing and maintain precise beam placement despite disturbances. [Optica Publishing Group+2CORE]opg.optica.orgOptica Publishing GroupLaser beam jitter control of the link in free space optical…by X Wang · 2021 · Cited by 37 — This research prop…

An important distinction is that the mirror is not normally responsible for every aspect of beam quality. In many architectures it addresses tip-tilt errors—the simplest and often most damaging form of beam displacement—while other optical elements handle more complex distortions. The fast steering mirror keeps the beam centred; additional adaptive optics may reshape the wavefront itself. [Aero-Optics Group]aero-optics.nd.eduAero-Optics GroupAdaptive Optics and Beam Correction Systems | ResearchThe fast steering mirror allows us to cancel out tip/tilt and move…

Why High-Speed Control Loops Matter in Engagements

The value of a fine steering mirror depends not only on the mirror hardware but also on the speed of the control loop surrounding it. A correction that arrives after the disturbance has already moved the beam is of limited use. Effective beam-control systems therefore aim to minimise sensing delays, computation delays and actuator response times. [DSpace]dspace.mit.eduControl of a Fast Steering Mirror for Laser-Based Satellite…by LE Hawe · 2006 · Cited by 28 — On power up, the FSM's angular pos…

Fast steering mirrors are attractive because they can achieve very high control bandwidths compared with larger pointing mechanisms. Piezoelectric and other high-performance actuator designs are commonly used because they provide rapid response and precise positioning. Some systems operate in frequency ranges reaching hundreds of hertz or even around the kilohertz regime, allowing them to suppress disturbances that would otherwise blur the beam spot. [The Engineer+2Physik Instrumente]theengineer.markallengroup.comThe EngineerDevelopment of magnetic fast steering mirror prototype for…July 6, 2018 — Cited by 3 — Fast Steering Mirrors (FSM) are req…Published: July 6, 2018

The engagement consequence is straightforward. If the control loop can correct disturbances faster than they develop, the beam remains concentrated on the intended aim point. If disturbances occur faster than the control system can respond, the spot begins to wander, peak heating falls and the required dwell time increases. The weapon may still deliver the same optical power, but less of that power remains concentrated where it is needed. [Optica Publishing Group+2CORE]opg.optica.orgOptica Publishing GroupLaser beam jitter control of the link in free space optical…by X Wang · 2021 · Cited by 37 — This research prop…

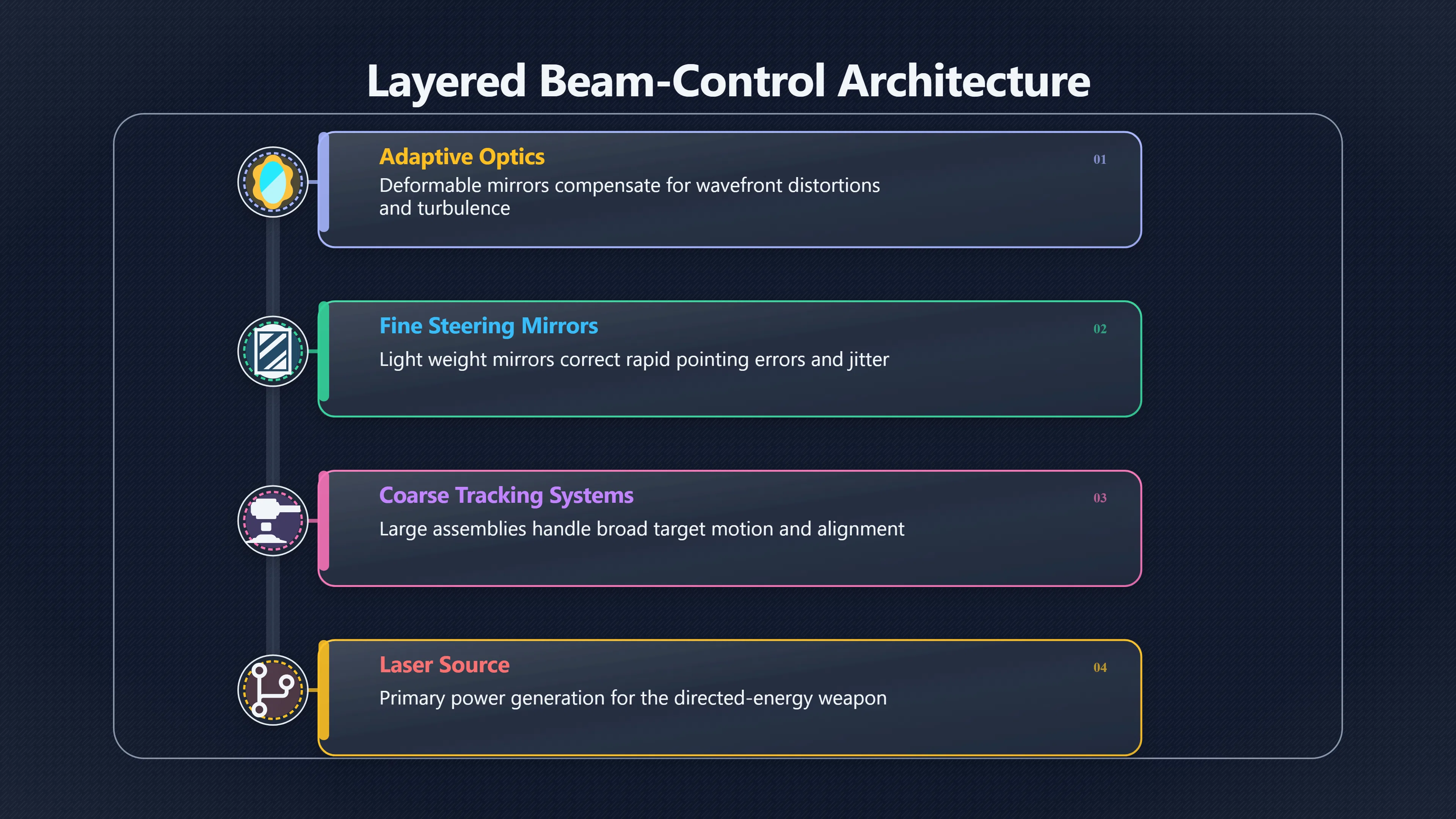

The Layered Beam-Control Architecture

Modern beam-control systems rarely rely on a single corrective device. Instead, they use layered control in which different hardware addresses disturbances at different scales and speeds. Fine steering mirrors occupy the middle-to-high-speed portion of this hierarchy. [Aero-Optics Group]aero-optics.nd.eduAero-Optics GroupAdaptive Optics and Beam Correction Systems | ResearchThe fast steering mirror allows us to cancel out tip/tilt and move…

A simplified division of labour is:

This layered approach appears repeatedly in high-performance laser applications ranging from optical communications to adaptive-optics astronomy and high-energy laser systems. Although the missions differ, the engineering challenge is similar: large mechanisms provide reach and coverage, while fine steering mirrors provide the speed required to maintain precise pointing. [Aero-Optics Group+2PI Japan]aero-optics.nd.eduAero-Optics GroupAdaptive Optics and Beam Correction Systems | ResearchThe fast steering mirror allows us to cancel out tip/tilt and move…

Why Fine Steering Mirrors Remain Central to Laser Weapons

The importance of fine steering mirrors comes from a basic reality of directed-energy engagements: a laser must remain focused on a very small area for long enough to accumulate damaging heat. Any vibration or pointing error spreads that energy and reduces effectiveness. A fast steering mirror acts as the system’s rapid-response stabiliser, correcting disturbances that larger tracking systems cannot address quickly enough. [Google Patents+2CORE]patents.google.comGoogle PatentsWO2016024265A1 - Directed energy weaponfine alignment correction of the HEL beam (1) is achieved by adjusting an angle of f…

As laser power levels increase, the requirement for precise pointing does not disappear. In many respects it becomes even more important. Higher power can only be fully exploited if the beam remains accurately placed on the intended aim point. Fine steering mirrors therefore occupy a crucial position in the beam-control chain, linking target tracking with high-energy beam delivery and helping ensure that optical power remains concentrated where it can do useful work. [Aero-Optics Group+2Google Patents]aero-optics.nd.eduAero-Optics GroupAdaptive Optics and Beam Correction Systems | ResearchThe fast steering mirror allows us to cancel out tip/tilt and move…
