Within Dragon Fire
Why Above the Horizon Tracking Is a Major Test
DragonFire's reported above-the-horizon drone interceptions highlight the tracking challenge that often determines whether a laser can achieve a kill.
On this page
- What above the horizon tracking actually means
- Why maintaining lock is harder than finding a target
- What the Dragon Fire trials demonstrated
Page outline Jump by section
Introduction
The most significant aspect of DragonFire’s reported drone interceptions may not be the laser itself, but the system’s ability to track and maintain a precise aim point on a fast-moving target beyond the immediate visual horizon. In laser weapons, generating energy is only part of the problem. Delivering enough energy to the same small spot on a moving drone for long enough to cause damage is often the harder challenge. The UK Ministry of Defence’s announcement that DragonFire achieved a national first in above-the-horizon tracking, targeting and destruction of high-speed drones therefore highlights a capability that sits at the heart of practical laser air defence. [GOV.UK]GOV.UKcan fly up to 650km/h including a UK firstBoost for Armed Forces as new laser weapon takes down…November 20, 2025 — 20 Nov 2025 — DragonFire achieves UK first in latest testing…
Unlike a missile, which can continue guiding itself after launch, a laser generally requires a continuous line of engagement. If tracking accuracy degrades even briefly, the beam can drift across the target, reducing heating and potentially preventing a successful kill. That is why above-the-horizon tracking is viewed as a meaningful test of the entire engagement chain rather than simply a demonstration of laser power. [MBDA Systems]mbda-systems.comdragonfire proving trials underwayMBDA SystemsDragonfire proving trials underway17 Jul 2022 — The tracking trial was an excellent test of. Leonardo's beam director and MBD…
What Above-the-Horizon Tracking Actually Means
In the context of DragonFire, “above-the-horizon” refers to engaging aerial targets that are visible and detectable above the local horizon line but are operating at substantial distance and speed. The phrase is important because tracking difficulty increases dramatically as range grows. A drone moving at high speed may appear to shift only slightly in the sky, yet those small angular changes translate into large positional changes at long distance. [GOV.UK]GOV.UKcan fly up to 650km/h including a UK firstBoost for Armed Forces as new laser weapon takes down…November 20, 2025 — 20 Nov 2025 — DragonFire achieves UK first in latest testing…
Laser weapons do not simply point in the general direction of a target. They must know exactly where the target is, predict where it will be moments later, compensate for platform motion and atmospheric effects, and continuously adjust the beam director. DragonFire combines sensors, image-processing systems, tracking algorithms and beam-control hardware to achieve this precision. MBDA describes the system as relying on advanced tracking algorithms and sophisticated image processing to identify and track targets before applying the laser effect. [MBDA Systems]mbda-systems.comMBDA SystemsDRAGONFIREUsing world-leading coherent beam-combining technology, advanced tracking algorithms, and sophisticated image proce…
The challenge becomes even greater when the target is a drone rather than a larger aircraft. Drones typically present smaller visual signatures, can manoeuvre abruptly, and may expose only limited vulnerable areas for the laser to exploit. Maintaining precise track quality over the entire engagement window is therefore essential. [MBDA Systems]mbda-systems.comMBDA SystemsDRAGONFIREUsing world-leading coherent beam-combining technology, advanced tracking algorithms, and sophisticated image proce…
Why Maintaining Lock Is Harder Than Finding a Target
Detecting a drone and destroying it are separated by several technical steps, and tracking occupies most of that gap.

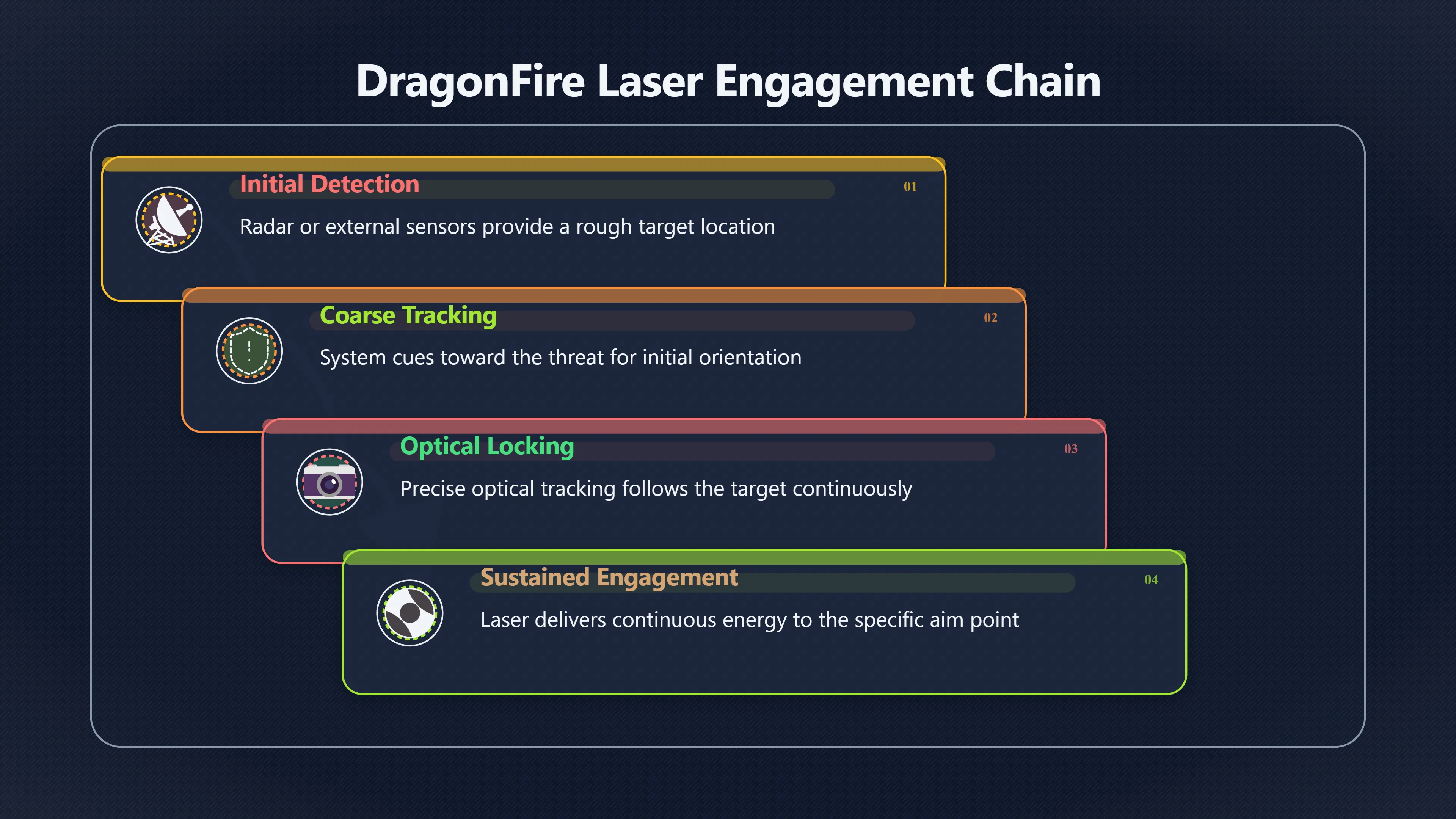

A radar or external sensor may first detect the target and provide a rough location. DragonFire is then cued toward the threat using what engineers often describe as coarse tracking. Once pointed in the correct direction, the system transitions to much more precise optical tracking that follows the target continuously. [Navy Lookout]navylookout.comNavy Lookout Dragon Fire – pathway to a Laser Directed Energy WeaponNavy LookoutDragonFire – pathway to a Laser Directed Energy Weapon…March 11, 2024 — 11 Mar 2024 — DragonFire is initially cued onto th…
This process sounds straightforward but involves several simultaneous tasks:
- Keeping the target centred despite rapid motion.
- Predicting future target position rather than reacting to old data.
- Stabilising the beam director against vibration and movement.
- Maintaining focus on a specific aim point rather than merely the target’s general outline.
- Compensating for atmospheric distortion along the beam path. [MBDA Systems]mbda-systems.comdragonfire proving trials underwayMBDA SystemsDragonfire proving trials underway17 Jul 2022 — The tracking trial was an excellent test of. Leonardo's beam director and MBD…
For a laser weapon, aim-point stability is especially important because damage accumulates over time. A missile can destroy a target through a single intercept event. A laser typically needs sustained energy deposition. If the beam wanders across the airframe, heat spreads over a larger area and the destructive effect decreases. This is why DragonFire’s development programme repeatedly emphasised ultra-precise pointing and tracking rather than laser output alone. [MBDA Systems+2Joint Forces News]mbda-systems.comdragonfire proving trials underwayMBDA SystemsDragonfire proving trials underway17 Jul 2022 — The tracking trial was an excellent test of. Leonardo's beam director and MBD…
An often-overlooked aspect is that the system must track not just the target but also its own beam placement. The fire-control system needs constant confirmation that the energy is arriving where intended. In practical terms, successful laser engagements are frequently demonstrations of tracking quality disguised as demonstrations of laser power. [MBDA Systems]mbda-systems.comdragonfire proving trials underwayMBDA SystemsDragonfire proving trials underway17 Jul 2022 — The tracking trial was an excellent test of. Leonardo's beam director and MBD…
What the DragonFire Trials Demonstrated
The public reporting around DragonFire’s 2025 trials focused on the destruction of drones travelling at speeds up to 650 km/h. However, the Ministry of Defence specifically highlighted a UK first in above-the-horizon tracking, targeting and shooting down such drones. That wording is notable because it emphasises the engagement process rather than only the final result. [GOV.UK]GOV.UKcan fly up to 650km/h including a UK firstBoost for Armed Forces as new laser weapon takes down…November 20, 2025 — 20 Nov 2025 — DragonFire achieves UK first in latest testing…
Earlier DragonFire trials had already concentrated on proving the tracking architecture. In 2022, programme partners reported successful tests of the tracking system using Leonardo’s beam director, QinetiQ laser technology and MBDA image-processing and control systems. Those tests were designed to demonstrate the ultra-precise pointing accuracy required before a high-power laser could reliably achieve a damaging effect. [MBDA Systems]mbda-systems.comdragonfire proving trials underwayMBDA SystemsDragonfire proving trials underway17 Jul 2022 — The tracking trial was an excellent test of. Leonardo's beam director and MBD…
Subsequent firing trials then linked tracking performance with actual target defeat. The progression from tracking demonstrations to destruction of fast aerial targets suggests increasing confidence that the complete sensor-to-beam chain can maintain lock long enough for the laser to work as intended. [Joint Forces News]joint-forces.com59447 uk dragonfire laser directed energy weapon trialJoint Forces NewsUK DragonFire Laser Directed Energy Weapon Trial9 Nov 2022 — The trials involve firing the UK DragonFire demonstrator at…
Importantly, the achievement does not mean every drone can now be defeated under all conditions. Weather, visibility, target manoeuvres and engagement geometry still matter. What the trials do indicate is that DragonFire’s developers have moved beyond proving that a laser can burn material and toward proving that the system can repeatedly keep a damaging beam on realistic moving targets. [GOV.UK+2gCaptain]GOV.UKcan fly up to 650km/h including a UK firstBoost for Armed Forces as new laser weapon takes down…November 20, 2025 — 20 Nov 2025 — DragonFire achieves UK first in latest testing…
Why This Matters for Real-World Laser Weapons
Many directed-energy programmes have demonstrated impressive laser power in controlled conditions. Fewer have shown the ability to maintain precision tracking against realistic aerial threats. This distinction is crucial because operational success depends on the entire kill chain: detection, identification, tracking, beam control and sustained engagement. A weakness in any stage can prevent a successful intercept. [MBDA Systems]mbda-systems.comdragonfire proving trials underwayMBDA SystemsDragonfire proving trials underway17 Jul 2022 — The tracking trial was an excellent test of. Leonardo's beam director and MBD…
DragonFire’s reported above-the-horizon engagements therefore matter as evidence that the supporting technologies are maturing alongside the laser itself. The achievement suggests that beam directors, image-processing systems, fire-control software and tracking algorithms are reaching the level required for practical counter-drone missions. [MBDA Systems]mbda-systems.comMBDA SystemsDRAGONFIREUsing world-leading coherent beam-combining technology, advanced tracking algorithms, and sophisticated image proce…
For directed-energy weapons more broadly, this may be the most realistic measure of progress. High power attracts attention, but accurate, continuous tracking is what turns a laboratory laser into a functioning air-defence weapon. DragonFire’s above-the-horizon drone trials are significant because they test precisely that requirement. [GOV.UK+2Royal Navy]GOV.UKcan fly up to 650km/h including a UK firstBoost for Armed Forces as new laser weapon takes down…November 20, 2025 — 20 Nov 2025 — DragonFire achieves UK first in latest testing…
