The Tiny Mirror Movements Behind Laser Accuracy

Introduction

A high-energy laser can only deliver its full effect if its energy remains concentrated on a very small area of the target. Fast steering mirrors (FSMs) are one of the key mechanisms that make this possible. Hidden inside the beam director, these mirrors make tiny, rapid angular adjustments that compensate for vibration, tracking errors, structural flexing and other disturbances. Without them, even a powerful laser can spread its energy across a larger area and lose effectiveness. In modern directed-energy systems, the difference between a stable spot and a wandering spot is often measured not in laser power but in the quality and speed of the beam-control system. [ResearchGate]researchgate.netBeam control for high-energy laser devicesFast steering mirror (FSM)-based laser beam steering (LBS) systems are used in vari…

What Fast Steering Mirrors Correct

A fast steering mirror is a lightweight mirror mounted on actuators that can tilt it by extremely small amounts, often measured in microradians. The mirror responds far faster than a large turret or gimbal, allowing it to correct errors that occur hundreds or even thousands of times per second. [Pi USA]pi-usa.ushe Future of Laser Based Communication with LEO Satellites…

The disturbances that an FSM corrects include:

• Mechanical vibration from engines, pumps or moving platforms.

A useful way to think about the system is that the large turret points the laser generally towards the target, while the fast steering mirror performs the final fine corrections. The turret may move through degrees of angle, whereas the FSM continuously trims errors that are thousands of times smaller. [Preprints]preprints.orgA Review of Pointing Modules and Gimbal Systems for…4 Sept 2025 — Coarse pointing modules or gimbals serve as the primary mec…

Why Tiny Angular Errors Become Large Misses

Laser weapons face a geometric problem: small pointing errors grow into significant positional errors over long distances.

An angular error that appears insignificant inside the beam director can move the laser spot by a substantial distance when projected over kilometres. Because laser damage depends on maintaining high energy density on a specific point, even modest beam wander can spread the heating effect over a wider area. The result is reduced temperature rise and longer dwell times before damage occurs. [RP Photonics]rp-photonics.comRP PhotonicsBeam Pointing Fluctuations – laser pointing stabilityThe direction of the output beam of a laser is subject to some beam poin…

This is why beam-control engineers often focus intensely on jitter. The laser source may be generating the required power, yet if the beam oscillates around the target rather than remaining fixed on a vulnerable location, the energy effectively becomes diluted. Research into beam stabilisation systems consistently treats pointing stability as a critical performance metric alongside laser output power. [MDPI+2ResearchGate]mdpi.comLaser Beam Pointing Stabilization Control through…by H Chang · 2021 · Cited by 34 — In this paper, we develop a laser beam pointin…

The challenge becomes more severe as engagement range increases. Every improvement in pointing precision allows more of the laser’s energy to remain concentrated where it is needed, making high-accuracy steering systems a force multiplier for the entire weapon. [AIAA Journal]arc.aiaa.orgAIAA JournalInertial Stable Platforms for Precision Pointing of Optical…This paper addresses these unique directed-energy weapon (DEW)…

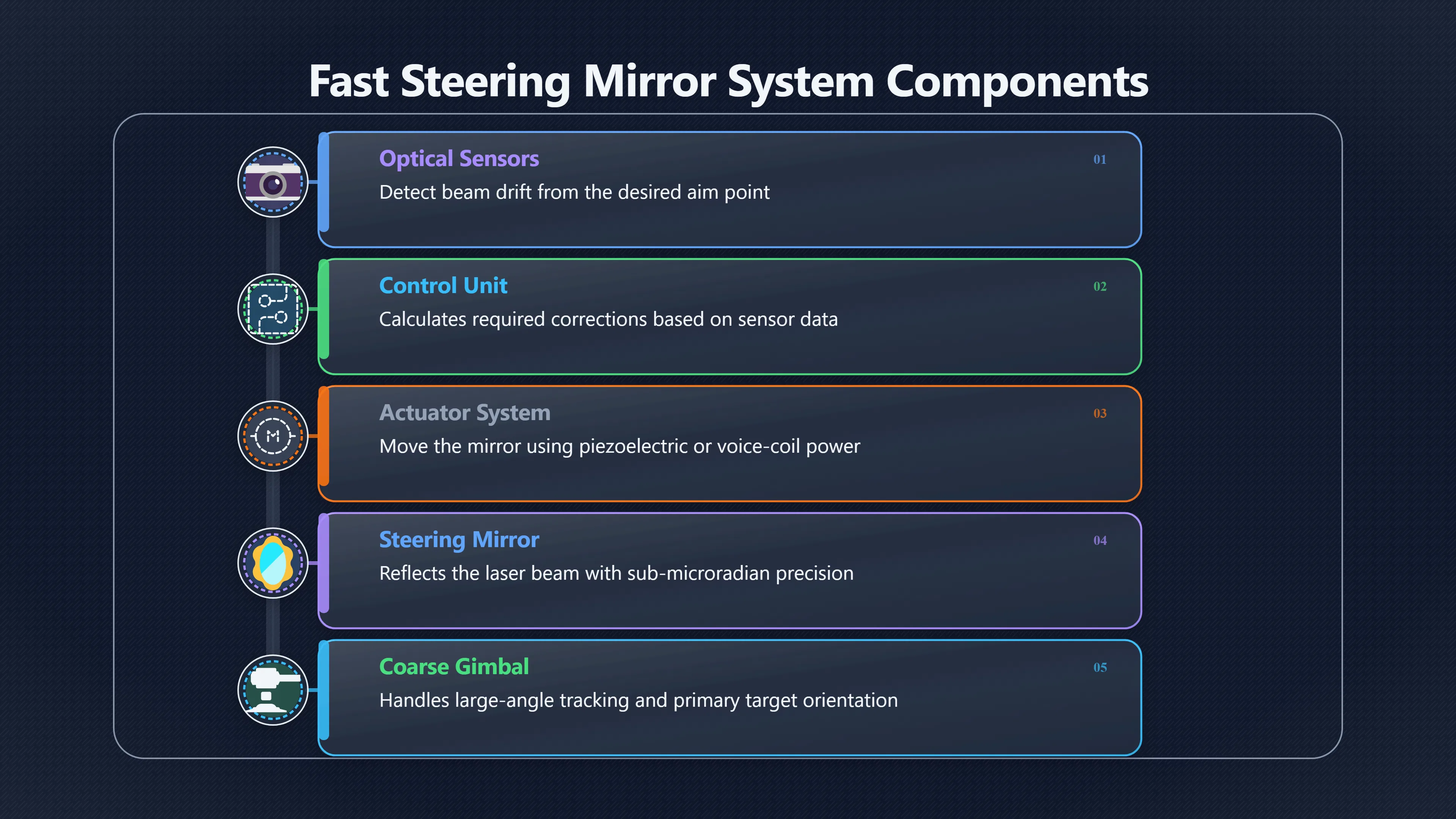

How Mirrors, Gimbals and Sensors Work Together

Fast steering mirrors do not operate independently. They are part of a closed-loop control system that constantly measures beam position and commands corrections.

Detecting the Error

Sensors first determine whether the beam is drifting away from the desired aim point. Depending on the design, these sensors may include tracking cameras, position-sensitive detectors, quadrant detectors or dedicated beam-monitoring optics. The sensor measures the difference between the desired position and the actual position of the beam. [OSTI.gov+2ResearchGate]osti.govPSD provides the error signal to steer the mirror. Angular measurements had a 0.5% margin of…

The measured error is sent to a controller that calculates how much correction is required.

Moving the Mirror

The controller commands piezoelectric, electromagnetic or voice-coil actuators attached to the mirror. These actuators tilt the mirror by minute amounts in two axes. Because reflection doubles angular change, a very small mirror motion can produce a useful correction in beam direction. High-performance systems are designed for extremely high bandwidth, allowing them to react faster than many of the disturbances they are correcting. [MDPI+2MKS API]mdpi.comSystem Integration Design of High-Performance Piezo…by JG Kim · 2024 · Cited by 14 — This paper presents an innovative piezo-actua…

Modern FSMs can achieve sub-microradian precision and operate at frequencies reaching into the kilohertz range, enabling them to suppress rapid jitter that would overwhelm slower mechanical systems. [Tech Briefs]techbriefs.comTech Briefs Enabling Stable Laser Communication in Satellite NetworksTech BriefsEnabling Stable Laser Communication in Satellite NetworksJune 1, 2025 — 29 May 2025 — Fast Steering Mirrors (FSMs) are high-pe…Published: June 1, 2025

Dividing the Work

A common architecture separates coarse and fine pointing.

The gimbal or turret handles large-angle tracking, keeping the target inside the beam director’s field of regard. The FSM then removes the residual errors that remain after the coarse pointing system has done its job. This layered approach allows each mechanism to operate where it is most effective: large structures provide reach, while the small mirror provides precision. [Bena Optical]benaoptics.comBena OpticalFSM in Free-space Laser Communication SystemsA typical laser communication ATP system mainly includes a coarse tracking gimba…

Why Fast Steering Mirrors Are Built for Speed

The mirror itself is only one part of the design challenge. Engineers must also minimise mass, structural resonance and mechanical coupling between the two steering axes.

Many FSMs use flexure-based suspensions rather than conventional bearings. Flexures eliminate friction and wear while allowing extremely smooth motion. Piezoelectric actuators are often chosen when maximum precision and bandwidth are required, while voice-coil systems can provide larger steering ranges. [Pi USA+2MKS API]pi-usa.usOpen source on pi-usa.us.

Control algorithms are equally important. Researchers have developed advanced feedback and predictive-control methods to compensate for disturbances, actuator non-linearities and cross-axis coupling. Modern systems increasingly combine high-speed sensing with sophisticated control software to maintain accuracy under demanding conditions. [Optica]opg.optica.orgupcoming pdf.cfmImproved prescribed performance control of fast steering…by L Li · 2025 · Cited by 1 — Abstract: To meet the high-performance co…

The need for such sophistication arises because an FSM is constantly fighting motion. Vibrations, atmospheric effects and platform dynamics never fully disappear; the mirror’s task is to cancel them faster than they can degrade the beam. [ResearchGate+2Researching]researchgate.netVibration-induced jitter control in satellite optical…In this paper, the control of a fast steering mirror which is the co…

The Hidden Precision Behind Laser Effectiveness

Fast steering mirrors are among the least visible but most important components of a directed-energy weapon. They do not generate power, identify targets or provide long-range tracking. Instead, they perform the subtle task of keeping the laser exactly where it needs to be despite a stream of disturbances.

In practical terms, the FSM determines whether the beam remains concentrated on a single vulnerable point or smears its energy across a larger area. For aim-point tracking, that tiny mirror often provides the final layer of precision that turns a powerful laser into an effective weapon. [ResearchGate+2AIAA Journal]researchgate.netBeam control for high-energy laser devicesFast steering mirror (FSM)-based laser beam steering (LBS) systems are used in vari…
