Within Blooming
Can a Wider Beam Beat Thermal Blooming?
A wider beam can lower local air heating, but it demands larger optics and more precise beam control to put useful energy on target.
On this page
- Why narrow beams heat air more intensely
- How aperture size changes the design tradeoff
- Why short range and long range lasers make different choices
Page outline Jump by section
Introduction
A wider laser beam can often suffer less thermal blooming because the same optical power is spread across a larger cross-sectional area. That lowers the intensity of the beam as it travels through the atmosphere, reducing the rate at which the air along the path is heated. Since thermal blooming is driven by laser-induced heating that creates refractive-index gradients in the air, lower local heating generally means a weaker self-defocusing effect. The idea sounds simple, but it creates a major design trade-off for directed-energy weapons: reducing blooming usually requires larger apertures, larger optics, and more demanding beam-control systems to ensure that enough energy still arrives on a distant target. [RP Photonics+2Semantic Scholar]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
In practice, laser weapon designers are constantly balancing two competing goals. They want a beam intense enough to damage a target, yet not so concentrated during atmospheric propagation that it significantly distorts its own path. Beam diameter is one of the most important variables in that balance. [RP Photonics]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
Why Narrow Beams Heat Air More Intensely
Thermal blooming depends primarily on how much heat is deposited into the atmosphere and how concentrated that heating becomes. Even when air is relatively transparent, a small fraction of laser energy is absorbed by water vapour, aerosols, dust, and atmospheric molecules. The absorbed energy heats the air and changes its density. Because refractive index depends on density, the heated region behaves like a weak negative lens that pushes the beam outward. [RP Photonics]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
A narrow beam concentrates power into a smaller area. If two beams carry the same total power but one has twice the diameter of the other, the wider beam distributes that power over a much larger area. The narrower beam therefore produces higher irradiance and stronger local heating, creating steeper temperature and density gradients in the air. Those stronger gradients generate more severe blooming. Studies and scaling analyses of atmospheric laser propagation consistently identify smaller beam radius as a factor that increases thermal distortion effects. [RP Photonics]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
The relationship is not merely theoretical. Modelling work on high-energy laser propagation shows that thermal distortion decreases as beam size increases because the non-linear heating term is closely tied to initial beam intensity. When beam radius is reduced, intensity rises and blooming becomes more pronounced. [Semantic Scholar]pdfs.semanticscholar.orgThis is why the thermal distortion effects increase at 0.9 cm radius.Read more…
A useful way to visualise the effect is to imagine sunlight. A magnifying glass concentrates sunlight into a tiny bright spot that becomes hot enough to burn material. Thermal blooming is not the same phenomenon, but the underlying principle is similar: concentrated energy creates stronger local heating than the same energy spread over a larger area.

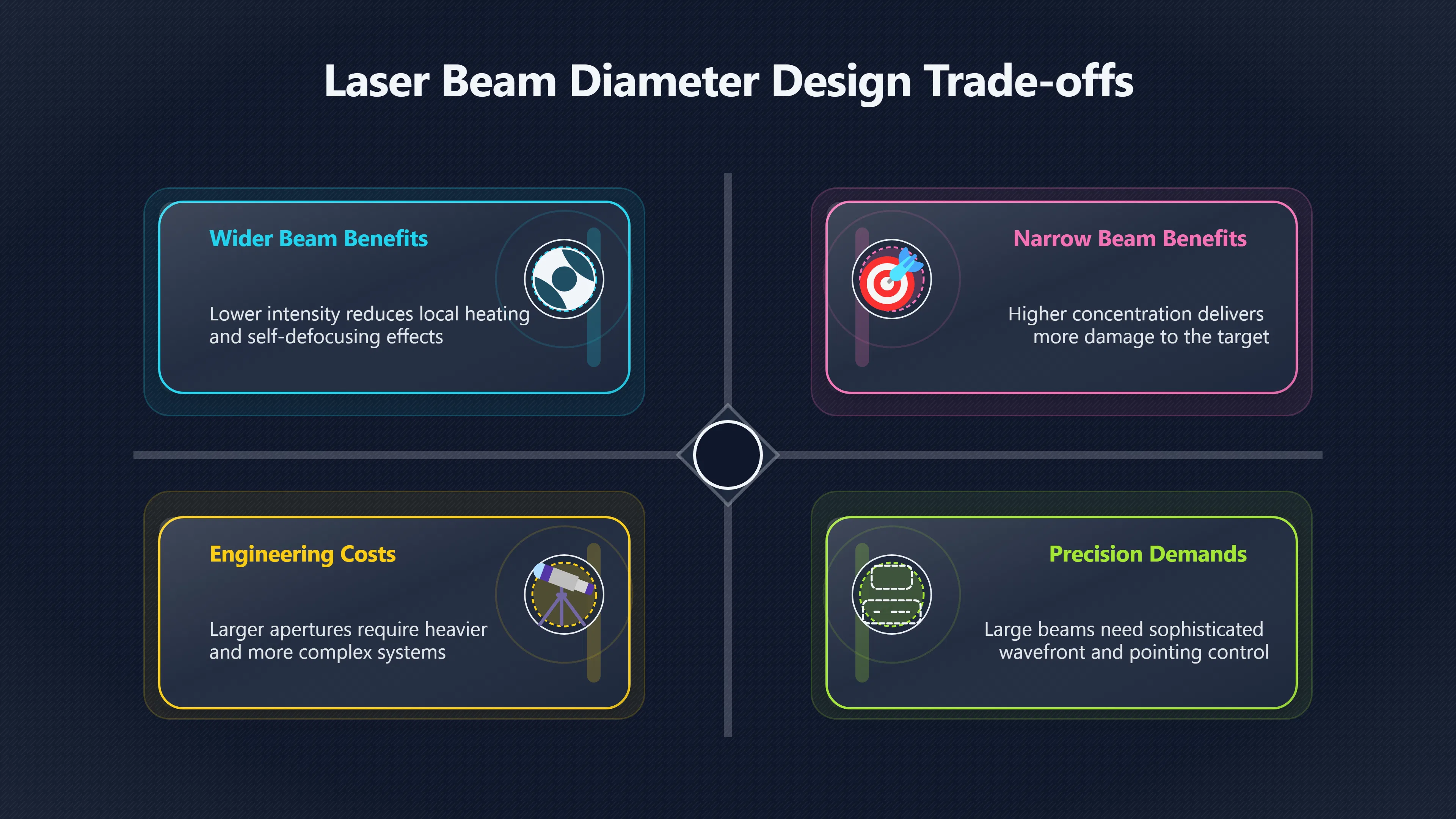

How Aperture Size Changes the Design Trade-Off
If making the beam wider reduces blooming, why not always use the widest possible beam?
The answer is that laser weapons must eventually deliver high intensity to a target. A beam that is intentionally broadened during propagation must usually be launched through a larger optical aperture and controlled with greater precision so that it can still be focused tightly at long range. [Wikipedia]WikipediaLaser weaponLaser weapon
This creates several engineering consequences:
- Larger optics: Wider beams require larger mirrors, telescopes, or beam directors to transmit the energy efficiently.
- Higher pointing accuracy: A large beam still has to be directed precisely so that the focused spot lands on the intended target.
- More demanding wavefront control: Optical imperfections become increasingly important as aperture size grows.
- Greater system size and mass: Large-aperture systems tend to be heavier and more difficult to integrate onto mobile platforms. [Wikipedia]WikipediaLaser weaponLaser weapon
The trade-off can be understood through diffraction. A larger aperture can produce a narrower diffraction-limited spot at long distance, which helps recover target intensity. However, the larger aperture is itself a major engineering challenge. Directed-energy systems therefore do not simply choose the largest beam possible; they seek an aperture large enough to limit atmospheric distortion while remaining practical for the platform carrying the weapon. [Wikipedia]WikipediaLaser weaponLaser weapon
This is one reason many high-energy laser concepts feature large beam directors or telescope-like optical assemblies. The large aperture is not merely for aiming—it is part of the strategy for managing atmospheric propagation losses, including thermal blooming. [Wikipedia]WikipediaLaser weaponLaser weapon
Why Short-Range and Long-Range Lasers Make Different Choices
The importance of beam diameter changes dramatically with engagement distance. [Wikipedia]WikipediaBeam diameterBeam diameter
At short ranges, the atmosphere has less distance over which to absorb energy and develop strong thermal gradients. Blooming still exists, but there is less opportunity for it to accumulate. Designers can often tolerate higher beam intensities because the beam reaches the target before atmospheric heating becomes the dominant limitation. [RP Photonics]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
At long ranges, the situation changes. The beam may travel through kilometres of atmosphere, allowing even weak absorption to deposit substantial heat along the propagation path. A narrow, highly intense beam can end up creating a stronger negative lens in the air and progressively reducing its own effectiveness. Under these conditions, increasing beam diameter becomes more attractive because it lowers the heating rate per unit area throughout the path. [RP Photonics+2DEPS]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
Long-range systems therefore tend to place greater emphasis on:
- Large apertures.
- Beam-quality preservation.
- Adaptive optics.
- Atmospheric compensation techniques.
Many proposed mitigation approaches, including adaptive optics and specialised beam formats, are ultimately attempts to preserve target irradiance while reducing the atmospheric distortions associated with concentrated energy transport. [MIT Lincoln Laboratory]archive.ll.mit.eduMIT Lincoln LaboratoryThermal-Blooming Laboratory ExperimentsWe conducted a multiphase series of laboratory experiments to explore the ad…
The Key Limitation: Wider Does Not Mean Unlimited
A wider beam does not eliminate thermal blooming. It only reduces one of the factors driving it. Total laser power, atmospheric absorption, humidity, aerosols, wind conditions, and propagation distance all continue to influence beam quality. Even a large-diameter beam can experience significant blooming if power levels are high enough or the atmospheric path is sufficiently challenging. [RP Photonics+2DEPS]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
Furthermore, increasing beam diameter indefinitely eventually runs into practical limits. Very large optical systems become expensive, heavy, and difficult to stabilise. They may also be unsuitable for aircraft, ships, or mobile ground vehicles. The result is a classic engineering compromise: enough beam width to keep atmospheric heating manageable, but not so much aperture that the weapon becomes impractically large. [Wikipedia]WikipediaLaser weaponLaser weapon
What “Bigger Beams Bloom Less” Really Means
The phrase is best understood as a propagation strategy rather than a universal rule. Thermal blooming is fundamentally linked to local atmospheric heating. By spreading power across a larger beam cross-section, designers reduce peak intensity in the air, weakening the thermally induced refractive-index gradients that cause self-defocusing. [RP Photonics]rp-photonics.comRP Photonics Thermal BloomingRP PhotonicsThermal BloomingNovember 17, 2025 — by R Paschotta · 2023 — If a high-power laser beam propagates through a gas or liquid, it…
The benefit comes at a cost: larger apertures, more sophisticated optics, tighter beam control, and greater platform complexity. For directed-energy weapons, the challenge is not simply making the beam bigger. It is making the beam big enough to survive the atmosphere while still concentrating useful energy onto a distant target. [Wikipedia+2DEPS]WikipediaLaser weaponLaser weapon
