How Lasers Read the Air Before They Fire

Introduction

Adaptive optics only works if it knows how the atmosphere has distorted the laser beam. For directed-energy systems, that creates a practical problem: before a deformable mirror can correct atmospheric turbulence, the system needs a reference signal that has travelled through the same disturbed air. Target reflections and dedicated beacon lasers provide that reference. By analysing the returning light, the system estimates how the atmosphere has warped the wavefront and then reshapes the outgoing beam to counteract those distortions. Without a usable reference, adaptive optics becomes far less effective because it is trying to correct turbulence it cannot accurately measure. Research in both defence and astronomy consistently shows that the quality of the reference signal is often the factor that determines how well adaptive optics can sharpen a beam through the atmosphere. [arc.aiaa.org+2NATO Publications]arc.aiaa.orgAdaptive Optics for Directed Energy: Fundamentals and…by RB Holmes · 2022 · Cited by 28 — Adaptive optics are beneficial for directed…

Why Adaptive Optics Needs a Reference Signal

Atmospheric turbulence does not simply push a laser beam off target. It changes the shape of the optical wavefront as the beam propagates. Different pockets of air bend light by different amounts, causing the beam to spread, wander, and lose intensity at the target.

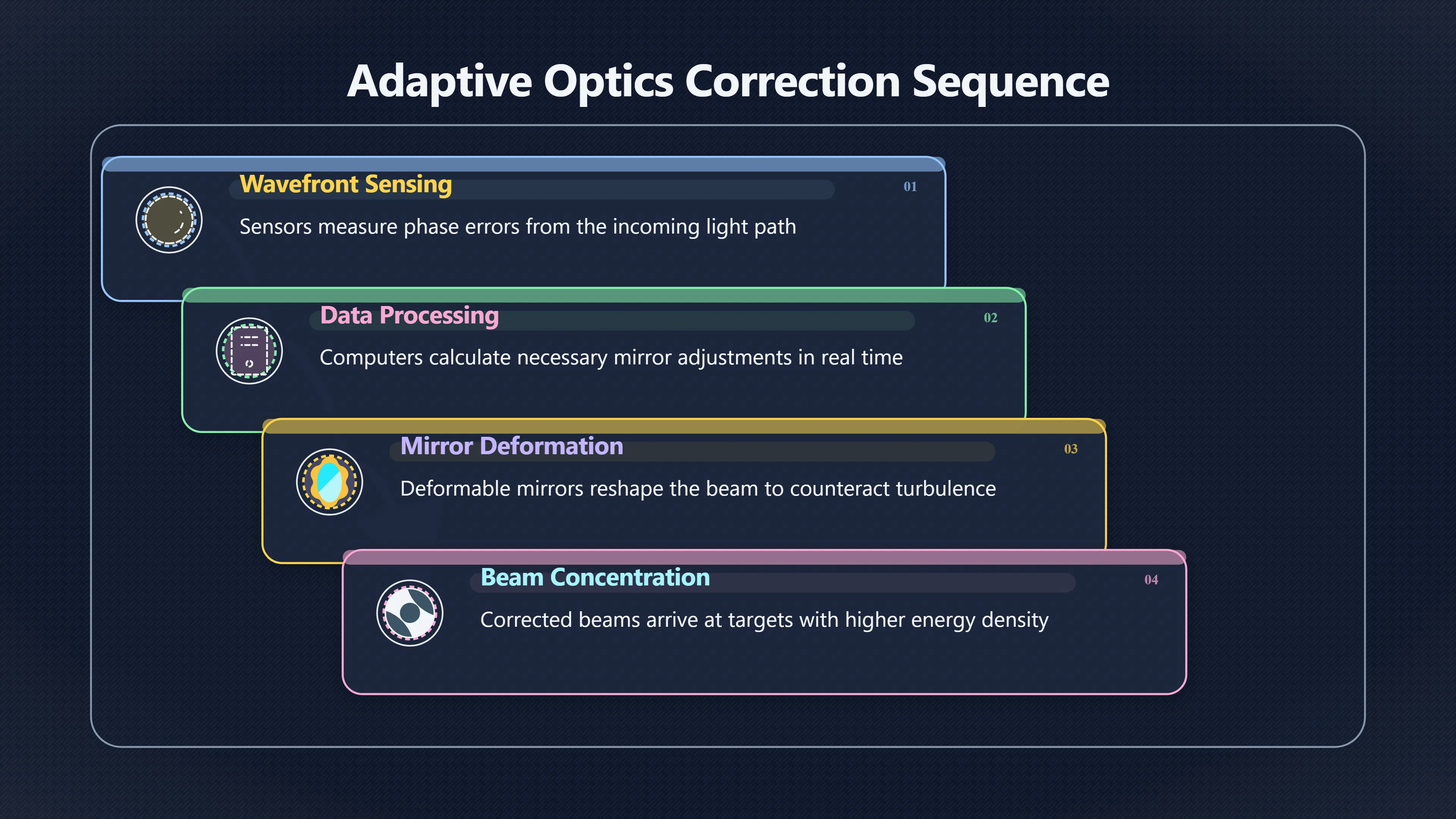

An adaptive-optics system therefore needs a way to measure those distortions in real time. A wavefront sensor compares incoming light against an expected reference and calculates the errors introduced by the atmosphere. A control computer then commands a deformable mirror to apply the opposite distortion so that the outgoing beam arrives at the target more tightly focused. [RP Photonics+2aao.org.au]rp-photonics.comRP Photonics Adaptive Optics – systems, wavefront correction, real-timeRP PhotonicsAdaptive Optics – systems, wavefront correction, real-time…December 27, 2025 — Adaptive optics deals with compensating wav…Published: December 27, 2025

The challenge is obtaining a reference that has sampled the same atmosphere as the outgoing beam. If the reference follows a different path, the measured distortions may not match the distortions affecting the weapon beam. That is why adaptive-optics research for directed-energy applications places so much emphasis on target returns, guide beacons, and other methods of sensing the actual propagation path. [arc.aiaa.org+2Google Patents]arc.aiaa.orgAdaptive Optics for Directed Energy: Fundamentals and…by RB Holmes · 2022 · Cited by 28 — Adaptive optics are beneficial for directed…

How Target Returns Guide Beam Correction

One solution is often called target-in-the-loop sensing. In this approach, light reflected or scattered back from the target is collected by the weapon system and analysed to determine how the atmosphere has altered the beam.

The principle is straightforward. The outgoing beam travels through turbulence, strikes the target, and some portion of the light returns. That returning light carries information about the distortions encountered along the path. By measuring the phase errors in the reflected signal, the adaptive-optics controller can iteratively adjust its deformable mirror to reduce the spot size and increase beam concentration on the target. [Google Patents+2Google Patents]patents.google.comPatents Beaconless adaptive optics systemGoogle PatentsBeaconless adaptive optics system - US8025425B229 Jan 2009 — An improved beaconless adaptive optics system and process. A t…

This approach has an important advantage: the reference signal comes from the same line of sight that matters operationally. Rather than estimating atmospheric conditions nearby, the system receives feedback from the actual path connecting laser and target. Defence-oriented adaptive-optics concepts have repeatedly explored this method because it directly links wavefront sensing to weapon effectiveness. [Google Patents]patents.google.comPatents Beaconless adaptive optics systemGoogle PatentsBeaconless adaptive optics system - US8025425B229 Jan 2009 — An improved beaconless adaptive optics system and process. A t…

However, target returns are rarely ideal. Real targets are not perfect mirrors. Their surfaces scatter light unevenly, producing optical speckle and noise that complicate wavefront measurement. The reflected signal can also be weak, especially at long ranges or against low-reflectivity objects. These limitations are a major reason why alternative beacon techniques continue to receive attention. [pages.mtu.edu]pages.mtu.eduBootstrap Beacon Creation for Dynamic Wavefront…by AV Sergeyev · 2006 · Cited by 8 — In this case, the beacon is created by the laser…

How Beacon Lasers Create an Artificial Reference

Instead of relying on the target itself, many adaptive-optics systems generate a dedicated reference beacon. The concept originated in astronomy, where laser guide stars are projected into the atmosphere to create an artificial point source for wavefront sensing. [NATO Publications+2RP Photonics]publications.sto.nato.intNATO Publications6.0 PROPAGATION AND ADAPTIVE OPTICSFeinlieb first proposed the use of a laser beacon for AO, now called an artificial gu…

The same basic idea can support atmospheric correction for laser propagation. A separate laser creates a known optical source somewhere along the propagation path. Light scattered back from that beacon is measured by a wavefront sensor, allowing the system to estimate atmospheric distortion and command corrective adjustments. [NATO Publications+2esastar-publication-ext.sso.esa.int]publications.sto.nato.intNATO Publications6.0 PROPAGATION AND ADAPTIVE OPTICSFeinlieb first proposed the use of a laser beacon for AO, now called an artificial gu…

Several implementation approaches have been investigated:

• Target-surface beacons, where reflected light from the target serves as the beacon.
• Rayleigh beacons, created by scattering from air molecules or aerosols at intermediate ranges.
• Cooperative beacons, in which a dedicated source is placed on or near the object of interest.
• Multi-beacon systems, which sample different portions of the atmosphere to improve correction accuracy. AMOS Conference+3pages.mtu.edu+3MIT Lincoln Laboratory [pages.mtu.edu]pages.mtu.eduBootstrap Beacon Creation for Dynamic Wavefront…by AV Sergeyev · 2006 · Cited by 8 — In this case, the beacon is created by the laser…

The key benefit is control. A beacon can be engineered to provide a stronger, more predictable signal than a random target reflection, giving the wavefront sensor cleaner data and more reliable corrections. [NATO Publications+2MIT Lincoln Laboratory]publications.sto.nato.intNATO Publications6.0 PROPAGATION AND ADAPTIVE OPTICSFeinlieb first proposed the use of a laser beacon for AO, now called an artificial gu…

Why Matching the Atmospheric Path Matters

Not every reference signal is equally useful. Adaptive optics performs best when the beacon and the outgoing beam experience nearly the same turbulence.

This requirement is often described through the concept of atmospheric path overlap. If a beacon samples only part of the turbulent volume, the measured distortions may not fully represent what the high-energy beam encounters. A beacon located well short of the target, for example, cannot reveal turbulence occurring beyond the beacon’s position. [pages.mtu.edu]pages.mtu.eduBootstrap Beacon Creation for Dynamic Wavefront…by AV Sergeyev · 2006 · Cited by 8 — In this case, the beacon is created by the laser…

Target returns have an advantage here because they naturally traverse the full path to the target and back. In principle, they provide information about the entire propagation channel. Beacon systems may trade some of that path fidelity for a cleaner or stronger signal. Designers therefore balance signal quality against atmospheric representativeness when selecting a sensing architecture. [pages.mtu.edu+2Google Patents]pages.mtu.eduBootstrap Beacon Creation for Dynamic Wavefront…by AV Sergeyev · 2006 · Cited by 8 — In this case, the beacon is created by the laser…

Why Heavy Turbulence Makes Sensing Harder

The atmosphere becomes more difficult to measure precisely as turbulence grows stronger. Distortions change faster, wavefront errors become larger, and the returning reference signal itself can be degraded.

In severe turbulence, a beacon or target reflection may break into rapidly changing speckle patterns. The wavefront sensor then receives a noisier signal and has less time to calculate corrections before atmospheric conditions change again. The adaptive-optics loop must operate at higher speeds while maintaining accuracy, a demanding engineering challenge. [arc.aiaa.org]arc.aiaa.orgAdaptive Optics for Directed Energy: Fundamentals and…by RB Holmes · 2022 · Cited by 28 — Adaptive optics are beneficial for directed…

Strong turbulence can also reduce the usefulness of conventional beacon methods. This has motivated research into so-called beaconless adaptive optics, where algorithms attempt to infer atmospheric distortion from other optical measurements rather than relying on a dedicated reference source. Defence research programmes and recent experimental work have explored these approaches specifically because obtaining a reliable beacon becomes increasingly difficult under challenging propagation conditions. [ResearchGate+3navysbir.us+3Google Patents]navysbir.usatmospheric distortion of the high-power laser beam in laser weapon systems…

Even when beaconless techniques are available, they are generally pursued because the reference-signal problem is so important. The fact that researchers continue searching for alternatives highlights how central accurate sensing remains to adaptive-optics performance. [navysbir.us]navysbir.usatmospheric distortion of the high-power laser beam in laser weapon systems…

What Target Beacons Ultimately Contribute

For adaptive optics, the reference signal is not a secondary component; it is the foundation of the correction process. Target reflections and beacon lasers allow the system to observe how the atmosphere is bending and distorting light before the main beam is fully committed to the engagement path.

The better that reference represents the actual atmospheric channel, the more accurately the deformable mirror can pre-correct the outgoing wavefront. Target returns offer direct feedback from the engagement path, while dedicated beacons can provide cleaner and more controllable measurements. Both approaches seek the same goal: giving the adaptive-optics system enough information to concentrate more laser energy onto the intended aim point despite atmospheric turbulence. rafael.co.il+3Google Patents+3arc.aiaa.org [patents.google.com]patents.google.comGoogle PatentsSystem for effecting high-power beam control with adaptive…The Target Wavefront Sensor 170 measures this wavefront (or p…
